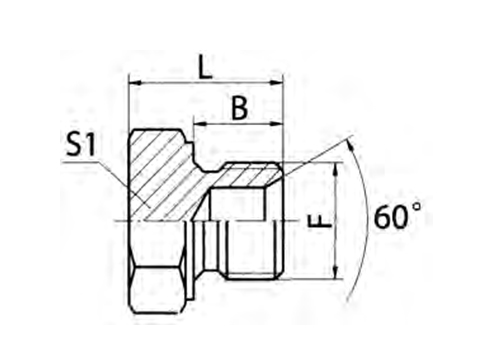

PART NO. THREAD DIMENSIONS F B L S1 4M-10 M10X1 8 15 14 4M-12 M12X1.5 10 17 17 4M-14 M14X1.5 11 19 19 4M-16 M16X1.5 12 20 22 4M-18 M18X1.5 12 20 24 4M-20 M20X1.5 14 23 27 4M-22 M22X1.5 14 23 27 4M-24 M24X1.5 14 25 30 4M-26 M26X1.5 16 28 32 4M-27D M27X1.5 16 28 32 4M-30 M30X2 18 30 36 4M-30D M30X1.5 18 30 36
PEHEL | Metric Male Thread Double Use Plug, 60° Cone Seal or Bonded Seal Plug
PEHEL Hydraulic Model: P4M
QTY:
Material: Carbon steel
Brand: PEHEL, OEM
Connector Type: Plug / Adapter
Thread Type: Metric Male
Sealing Options: 60° Cone Seat or Bonded Seal
Surface Treatment: Zinc-plated or as required
About the item:
1.Metric male plug designed for dual use – compatible with either 60° cone seat metal-to-metal sealing or bonded seal (combination washer) sealing on flat faces.
2.The male thread allows flexible installation in hydraulic ports where either sealing method is required, reducing inventory complexity.
3.Manufactured from high-strength carbon steel with anti-rust surface treatment for long service life in demanding environments.
4.Precision machined thread and sealing surfaces ensure reliable leak-proof performance under high pressure.
5.Ideal for hydraulic systems, industrial machinery, and fluid power applications requiring metric male connections with versatile sealing options.
