Home / Flange Fitting / SAE Flange / PEHEL | JIS Flange Hydraulic Fitting + 5/8" Flange Size + P88112 | Fast Shipment In Stock
PEHEL | JIS Flange Hydraulic Fitting + 5/8

PEHEL | JIS Flange Hydraulic Fitting + 5/8" Flange Size + P88112 | Fast Shipment In Stock

PEHEL Hydraulic Model: P88112

QTY:

  • Material: Carbon steel
    Brand: Pehel, OEM
    Color: Silver
    Connector Type: straight
    Thread Type:     JIS


    About the item:

    1. 1. JIS flange layout optimizes routing in confined hydraulic installations, saves piping space.

    2. 2. Rated for 5/8" flange size, fits DN12 to DN20 hose bore reliably. Fast shipment in stock.

    3. 3. Precision machined JIS flange ensures zero leakage under high pressure.

    4. 4. For spiral hoses, use PEHEL 88111 series. P88112 series fits braided hoses, avoids oil seepage.

    5. 5. PEHEL Hydraulic brand ensures reliable quality. Fast shipment in stock, ready to order today.

  • Specification
  • You May Also Like

  • PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
    DN DASH A C D L
    88112-10-08 5/8" 12 08 45 34.2 27.8 6.7
    88112-10-10 5/8" 16 10 46 34.2 27.8 6.7
    88112-10-12 5/8" 20 12 46.3 34.2 27.8 6.7
    NOTE:1.For use with spiral hoses.                   2.If use with braided hoses,hose fitting series number is 88111-XX-XX。

  • 1S/ Hydraulic JIS Gas 60Deg Cone Straight
    Details

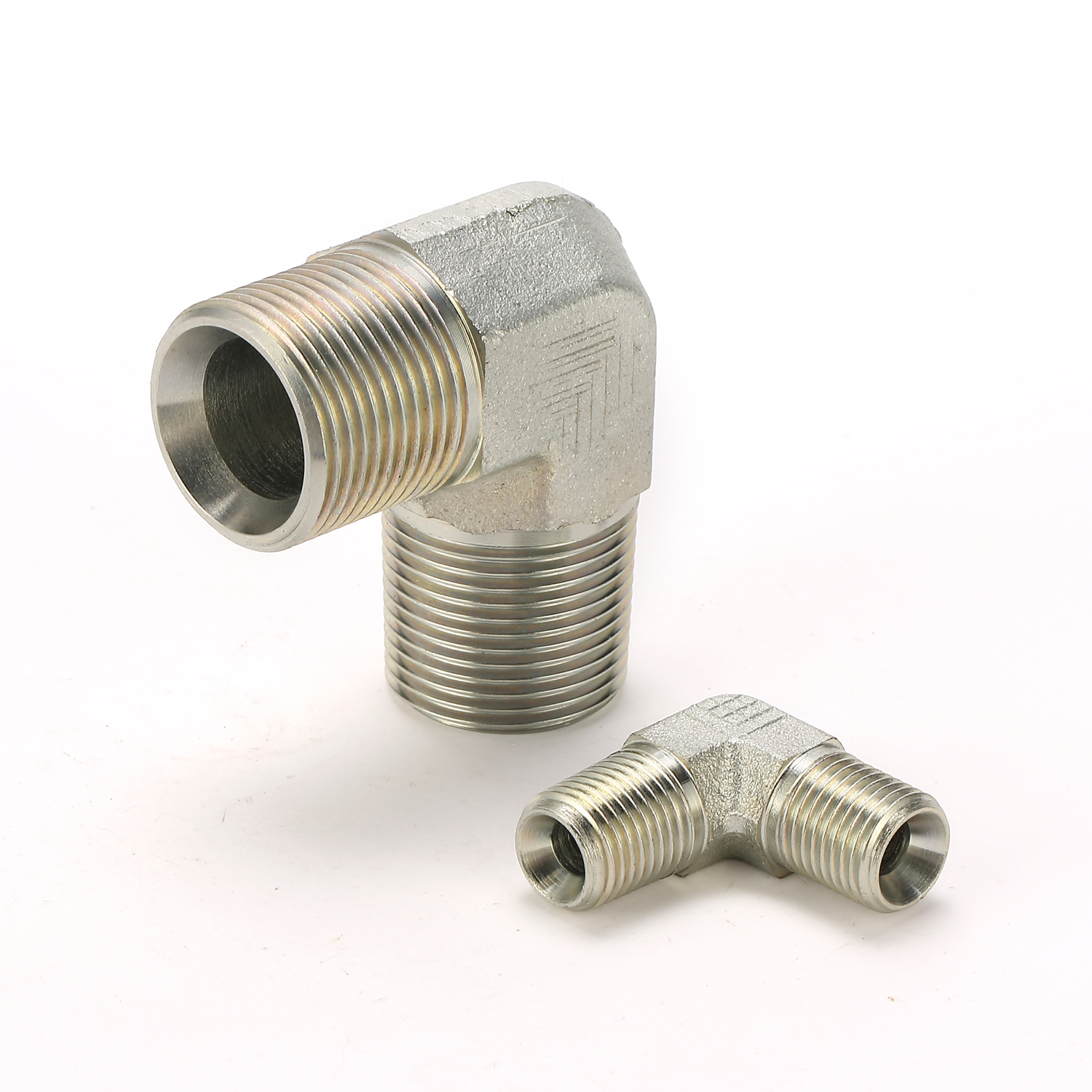

    P1BT9-SP 90°ELBOW BSP MALE 60°SEAT X BSPT HOSE CONNECTOR
