THREAD DIMENSIONS PART NO. E F G A B C S1 S2 BJ-04 7/16"X20 7/16"X20 7/16"X20 24.5 9.5 24.5 11 17 BJ-05 1/2"X20 1/2"X20 1/2"X20 26.5 9 26.5 14 19 BJ-06 9/16"X18 9/16"X18 9/16"X18 26.9 9.5 26.9 14 19 BJ-08 3/4"X16 3/4"X16 3/4"X16 32 10.8 32 19 24 BJ-10 7/8"X14 7/8"X14 7/8"X14 37.8 12 37.8 22 27 BJ-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 44.2 13 44.2 27 32 BJ-16 1.5/16"X12 1.5/16"X12 1.5/16"X12 49 14 49 33 41 BJ-20 1.5/8"X12 1.5/8"X12 1.5/8"X12 56 15 56 41 50 BJ-24 1.7/8"X12 1.7/8"X12 1.7/8"X12 63.5 19 63.5 48 55

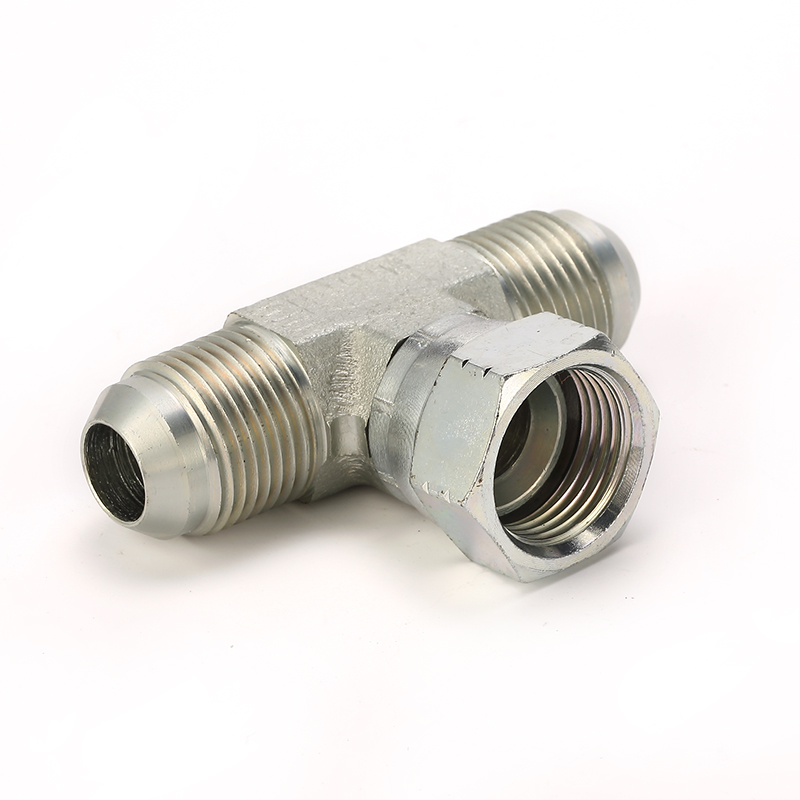

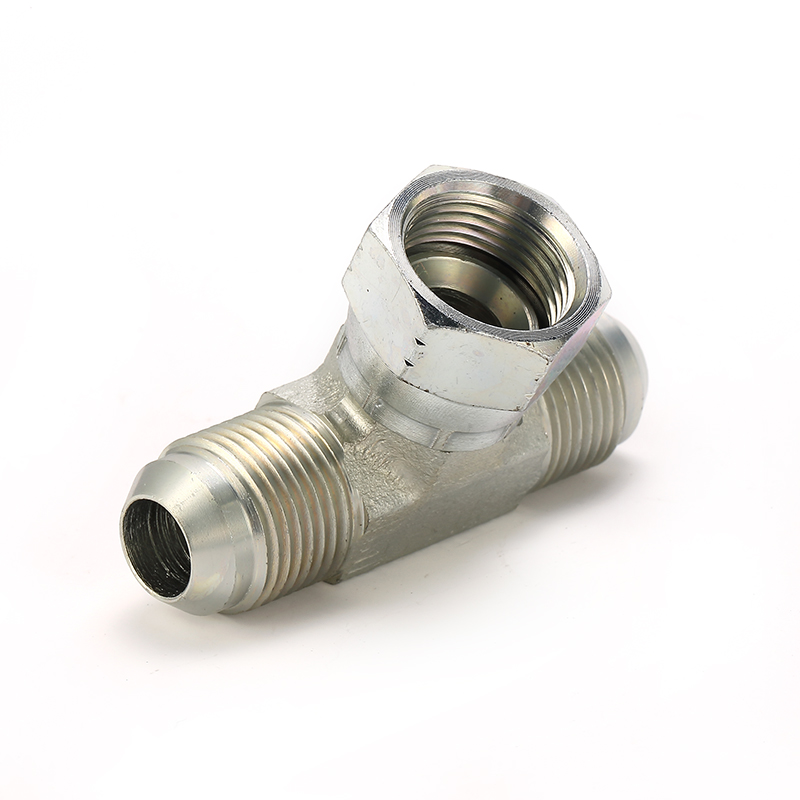

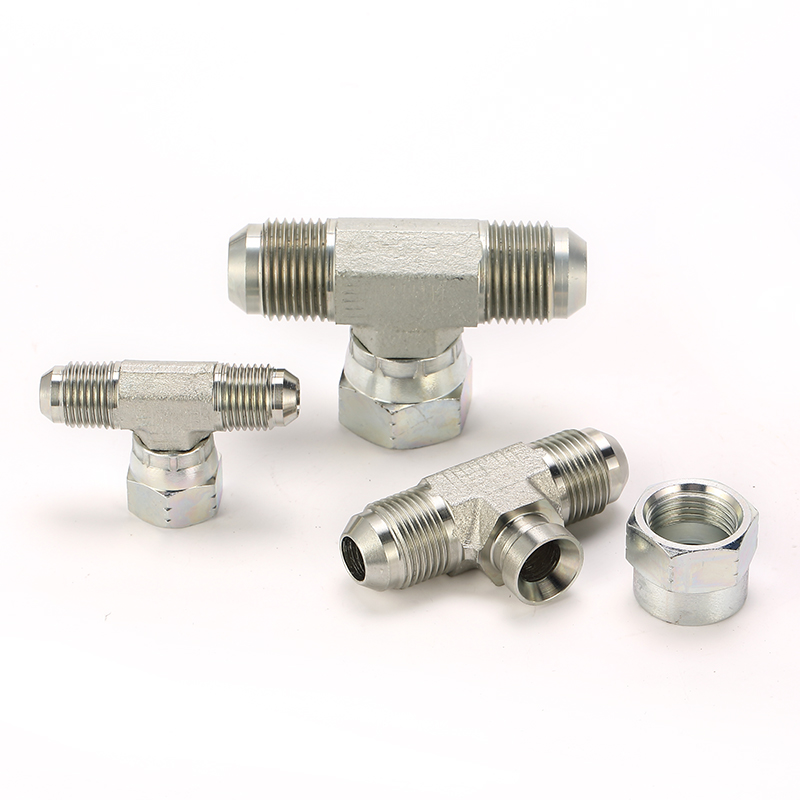

Pehel | JIC Male 74°Cone JIC Female Branch Tee Joint
PEHEL Hydraulic Model: PBJ
QTY:
- Material: Carbon steel, stainless steel
- Brand: Pehel, OEM
- Color: Silver color zinc plating
- Connector Type: JIC Male 74° Cone / JIC Female Branch Tee
- Thread Type: JIC 74° cone flare (UNF straight thread)
About the item:
- 1.This heavy‑duty JIC branch tee joint features standard 74° cone flare for firm metal‑to‑metal sealing performance.
- 2.Reliable JIC hydraulic fitting is available in carbon steel and stainless steel to fit different working conditions.
- 3.Silver zinc‑plated surface offers great corrosion resistance for this robust hydraulic branch tee connector.
- 4.JIC male 74° cone with female branch structure, this JIC 74‑degree cone tee simplifies pipeline branch installation.
- 5.Pehel factory direct supply, accept OEM custom sizes for your JIC male female tee hydraulic system projects.
