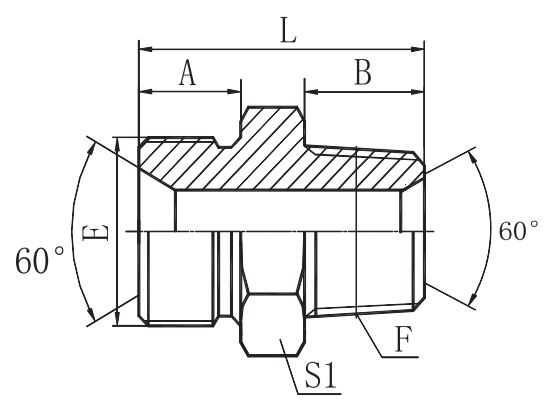

THREAD DIMENSIONS PART NO. E F A B S1 S2 1BN-02 G1/8"X28 Z1/8"X27 10 10.5 26 14 1BN-02-04 G1/8"X28 Z1/4"X18 10 15 31 17 1BN-04 G1/4"X19 Z1/4"X18 12 15 33 19 1BN-04-02 G1/4"X19 Z1/8"X27 12 10.5 28 19 1BN-04-06 G1/4"X19 Z3/8"X18 12 16 34 19 1BN-04-08 G1/4"X19 Z1/2"X14 12 19.5 39.5 22 1BN-06 G3/8"X19 Z3/8"X18 13.5 16 37.5 22 1BN-06-04 G3/8"X19 Z1/4"X19 13.5 15 36 22 1BN-06-08 G3/8"X19 Z1/2"X14 13.5 19.5 41 22 1BN-06-12 G3/8"X19 Z3/4"X14 13.5 19.5 43 30 1BN-08 G1/2"X14 Z1/2"X14 16 19.5 45.5 27 1BN-08-06 G1/2"X14 Z3/8"X18 16 16 42 27 1BN-08-12 G1/2"X14 Z3/4"X14 16 19.5 45.5 30 1BN-08-16 G1/2"X14 Z1"X11.5 16 25.5 52.5 36 1BN-10-08 G5/8"X14 Z1/2"X14 17.5 19.5 47 30 1BN-10-12 G5/8"X14 Z3/4"X14 17.5 19.5 47 30 1BN-12 G3/4"X14 Z3/4"X14 18.5 19.5 49 32 1BN-12-06 G3/4"X14 Z3/8"X18 18.5 16 45.5 32 1BN-12-08 G3/4"X14 Z1/2"X14 18.5 19.5 49 32 1BN-12-16 G3/4"X14 Z1"X11.5 18.5 25.5 55 36 1BN-16 G1"X11 Z1"X11.5 20.5 25.5 59 41 1BN-16-12 G1"X11 Z3/4"X14 20.5 19.5 53 41 1BN-16-20 G1"X11 Z1.1/4"X11.5 20.5 26.5 60 46 1BN-20 G1.1/4"X11 Z1.1/4"X11.5 20.5 26.5 62 50 1BN-20-16 G1.1/4"X11 Z1"X11.5 20.5 25.5 61 50 1BN-20-24 G1.1/4"X11 Z1.1/2"X11.5 20.5 27.5 63 50 1BN-24 G1.1/2"X11 Z1.1/2"X11.5 23 27.5 65.5 55 1BN-24-20 G1.1/2"X11 Z1.1/4"X11.5 23 26.5 64.5 55 1BN-24-32 G1.1/2"X11 Z2"X11.5 23 27.5 67.5 65 1BN-32 G2"X11 Z2"X11.5 25.5 27.5 70 70 1BN-32-20 G2"X11 Z1.1/4"X1.51 25.5 26.5 69 70 1BN-32-24 G2"X11 Z1.1/2"X1.51 25.5 27.5 70 70
Pehel | Double Use Hydraulic Connectors BSP & NPT Male 60° Seat Bonded Seal Fittings

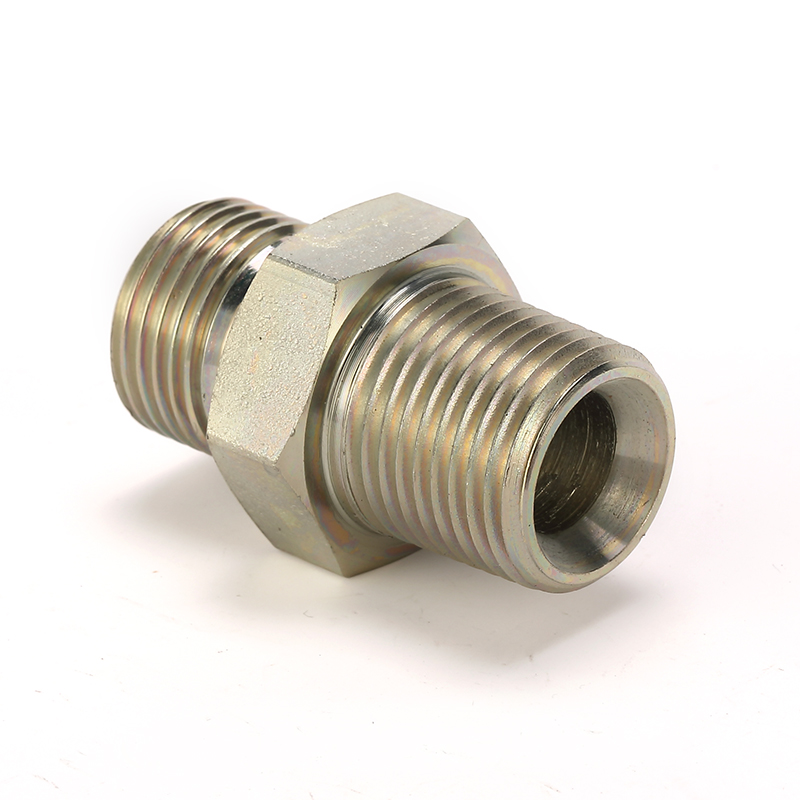

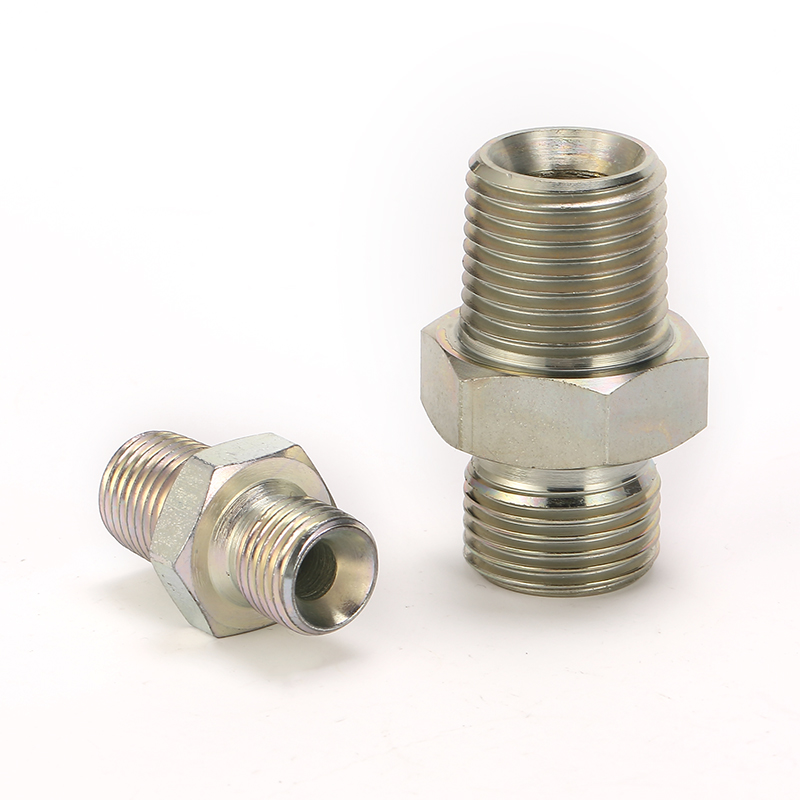

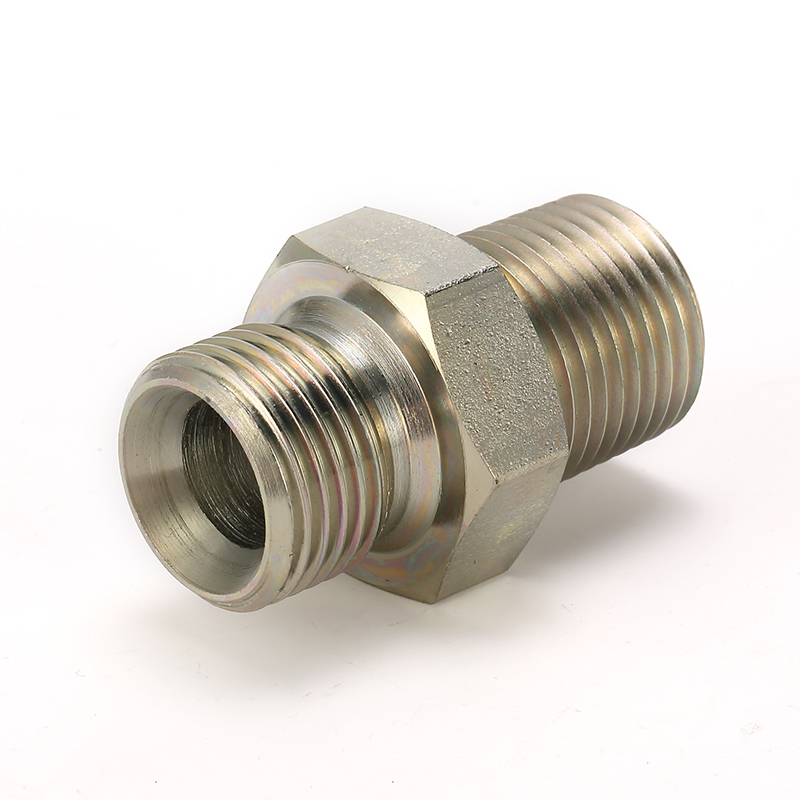

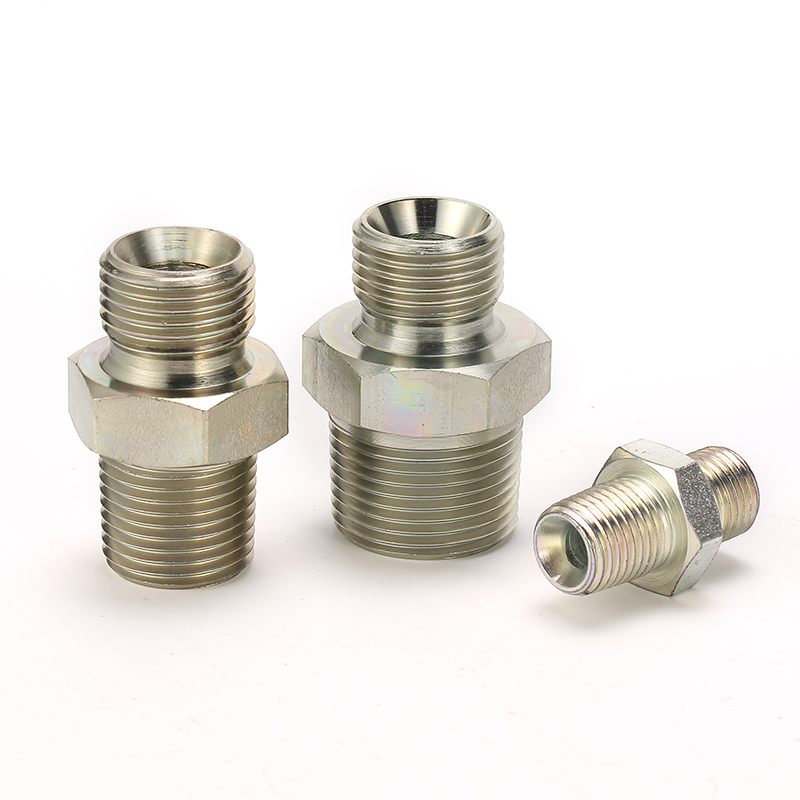

PEHEL Hydraulic Model: P1BN
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
Core Spec: 60° Seat, Bonded Seal
- About the item:
- 1.This Pehel double use hydraulic connector works for both 60° seat and bonded seal connection scenes.
- 2.Dual thread design includes BSP male and NPT male, greatly expanding the matching range of hydraulic pipelines.
- 3.Precise 60° seat structure matches bonded seal perfectly to realize excellent leakproof performance.
- 4.Made of carbon steel & stainless steel with silver zinc plating, anti-rust bonded seal fitting for long service life.
- 5.Smoothly machined BSP male and NPT male threads guarantee quick assembly and stable connection.
