HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: four/six high tensile steel wire spiral layers
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40oCto +121oCNominal Inside Wire Spiral layers max.Outside Working pressure Test pressure Burst pressure Bend radius Weight mm inch mm mm mm bar psi bar bar mm kg/m 19 3/4 19.0 32.9 4 36.1 420 6090 840 1680 265 1.50 25 1 25.4 38.9 4 42.9 420 6090 840 1680 330 2.10 31 1.1/4 31.8 48.4 6 51.5 420 6090 840 1680 445 3.60 38 1.1/2 38.1 56.3 6 59.6 420 6090 840 1680 530 5.10
Pehel | Wire Spiral Hydraulic Hose SAE 100 R15
PEHEL Hydraulic Model: SAE 100 R15
QTY:
- Standard: SAE 100 R15 / EN 856
- Hose Structure: Oil-resistant inner rubber tube, multi-layer steel wire spiral reinforcement, weather-resistant outer rubber cover
- Hose Material: Synthetic rubber + high tensile steel wire
- Brand: Pehel, OEM available
- Feature: Ultra high pressure, high impulse resistance, oil & abrasion resistant
- Application: Mining, construction, heavy industrial hydraulic equipment
About the item:
- 1.Our SAE 100 R15 wire spiral hydraulic hose uses multi-layer spiral steel wire reinforcement for ultra-high pressure resistance.
- 2.Inner synthetic rubber tube is oil-resistant; outer rubber cover withstands abrasion, weather and harsh working conditions.

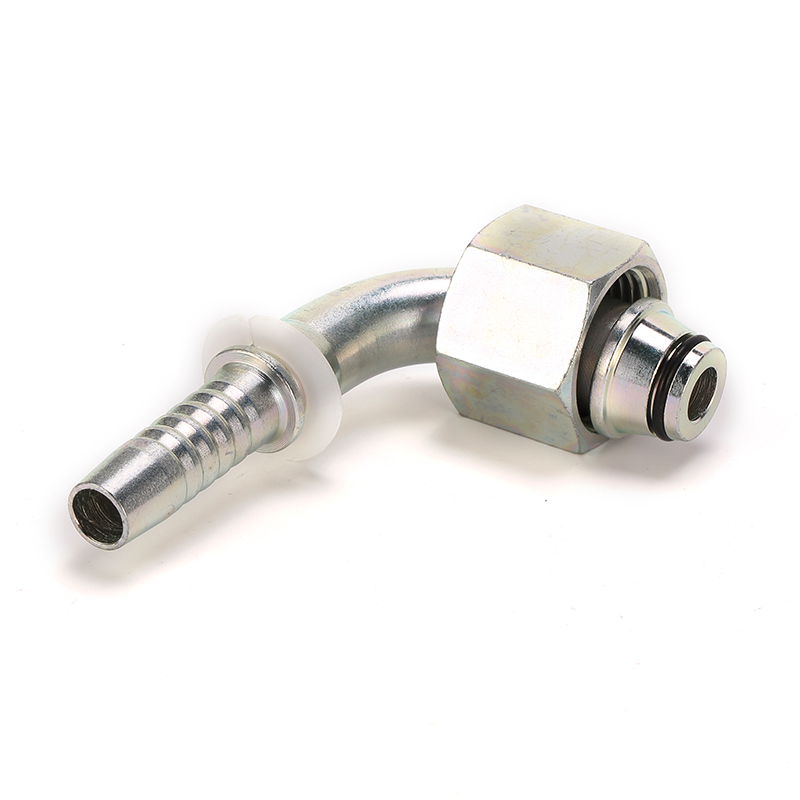

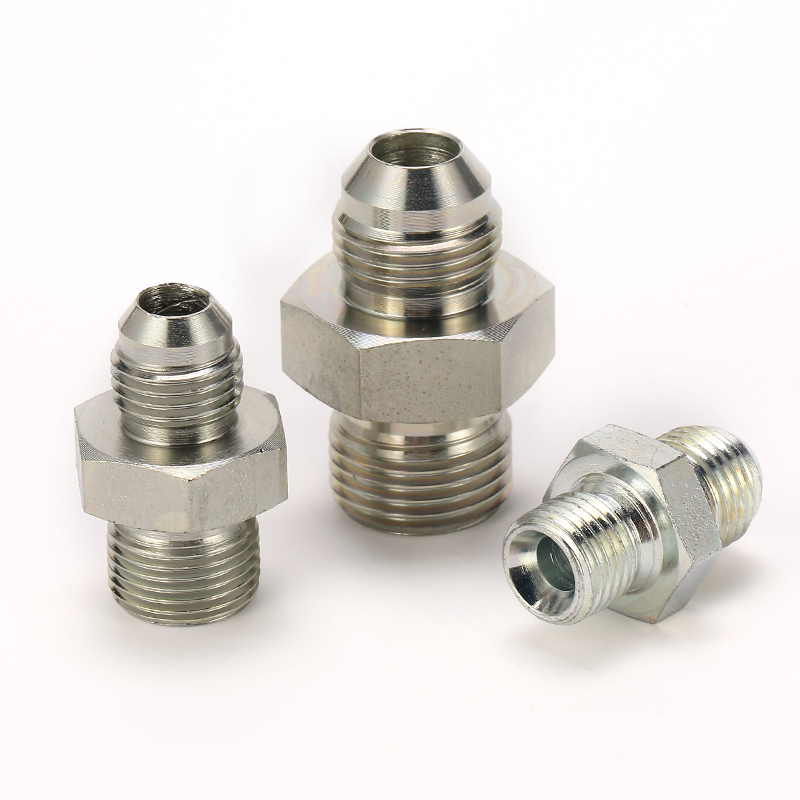

- 3.Optional carbon steel or stainless steel hydraulic fittings, available with silver zinc, chrome or nickle plating for anti-corrosion.
- 4.High impulse fatigue performance greatly extends service life in continuous heavy-duty hydraulic operations.

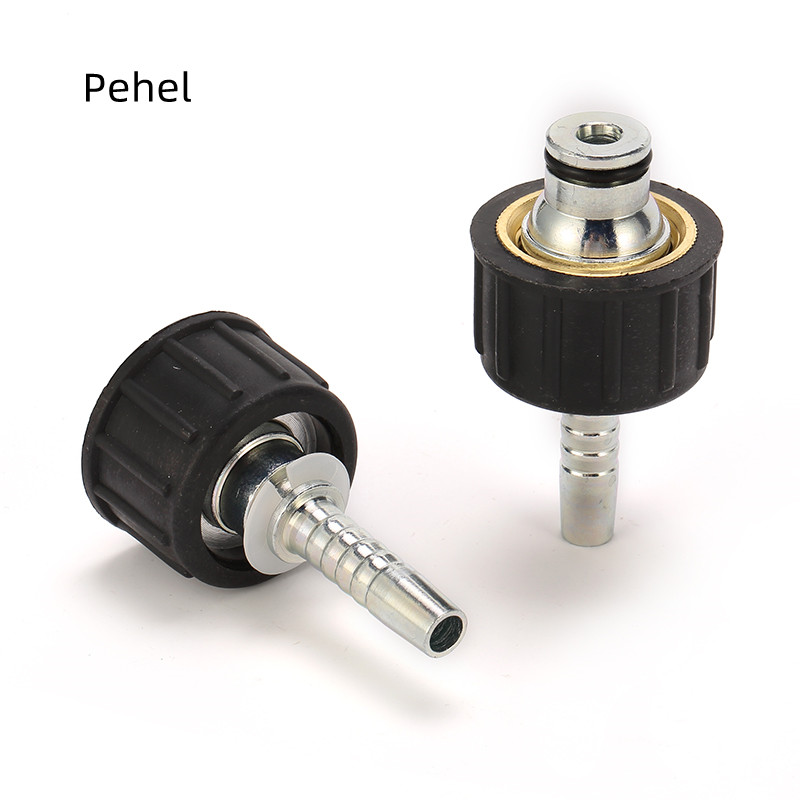

- 5.Custom connector and thread types are offered for this heavy duty hydraulic hose to match your hydraulic system.
- 6.Manufactured strictly to SAE 100 R15 standard, stable performance for mining, construction and industrial machinery.
