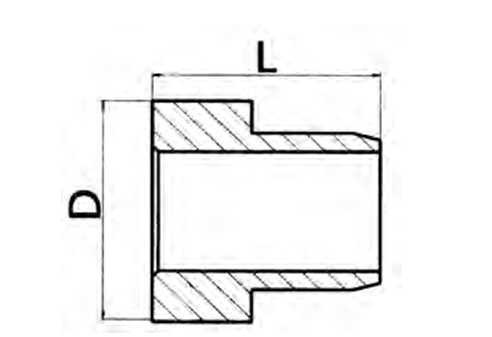

PART NO. THREAD TUBE O.D. DIMENSIONS MM D L NB500-06F 9/16"X18 6 12.75 8.5 NB500-10F 11/16"X16 10 15.75 8.5 NB500-12F 13/16"X16 12 18.92 9.5 NB500-16F 1"X14 16 23.44 9.5 NB500-20F 1.3/16"X12 20 27.86 12.5 NB500-25F 1.7/16"X12 25 34.21 14 NB500-30F 1.11/16"X12 30 40.56 14 NB500-38F 2"X12 38 48.51 14
Pehel | PNB500-F | Hydraulic ORFS Metric Sleeve Cutting Ring
PEHEL Hydraulic Model: PNB500-F
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Thread: ORFS
About the item:
1. Precision ORFS cutting ring – ensures leak-proof sealing on ORFS connections.
2. Reliable adapter design – connects cutting ring systems to ORFS ports.
3. Secure grip – cutting ring bites into tubing for vibration resistance.
4. Durable steel body – corrosion-resistant for high-pressure durability.
5. Easy installation – simple tightening creates reliable sealing.
