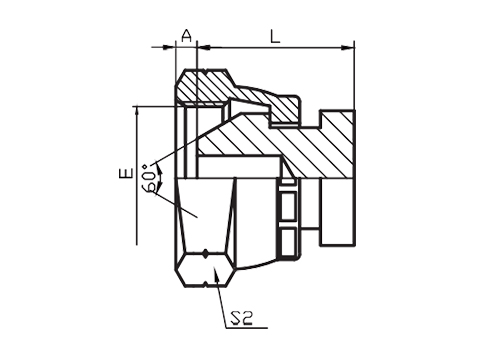

THREAD DIMENSIONS PART NO. E A L S2 9B-02 G1/8"X28 6 12 14 9B-04 G1/4"X19 5 14 19 9B-06 G3/8"X19 6.5 16 22 9B-08 G1/2"X14 7.8 17.5 27 9B-10 G5/8"X14 9 18 30 9B-12 G3/4"×14 10.5 18.5 32 9B-16 G1"X11 11 20.5 41 9B-20 G1.1/4"×11 11.5 22.5 50 9B-24 G1.1/2"X11 12.5 23.5 55 9B-32 G2"X11 17 28 70

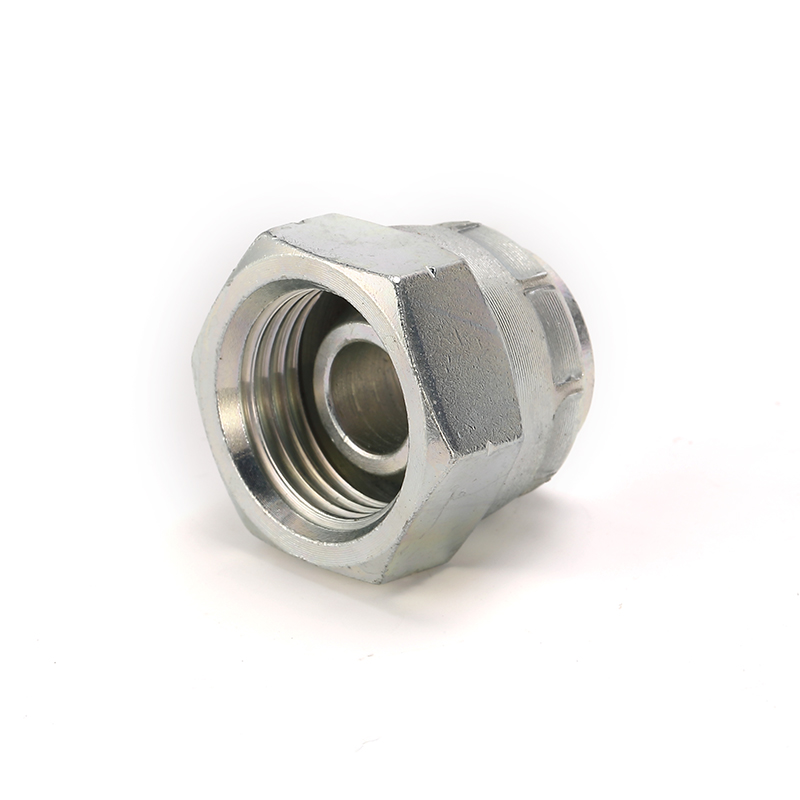

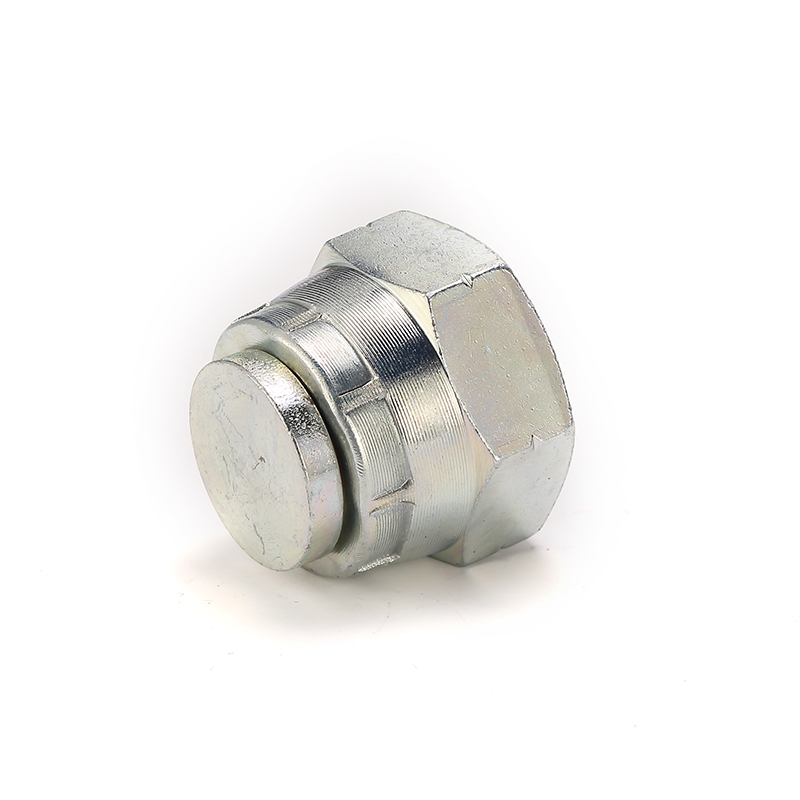

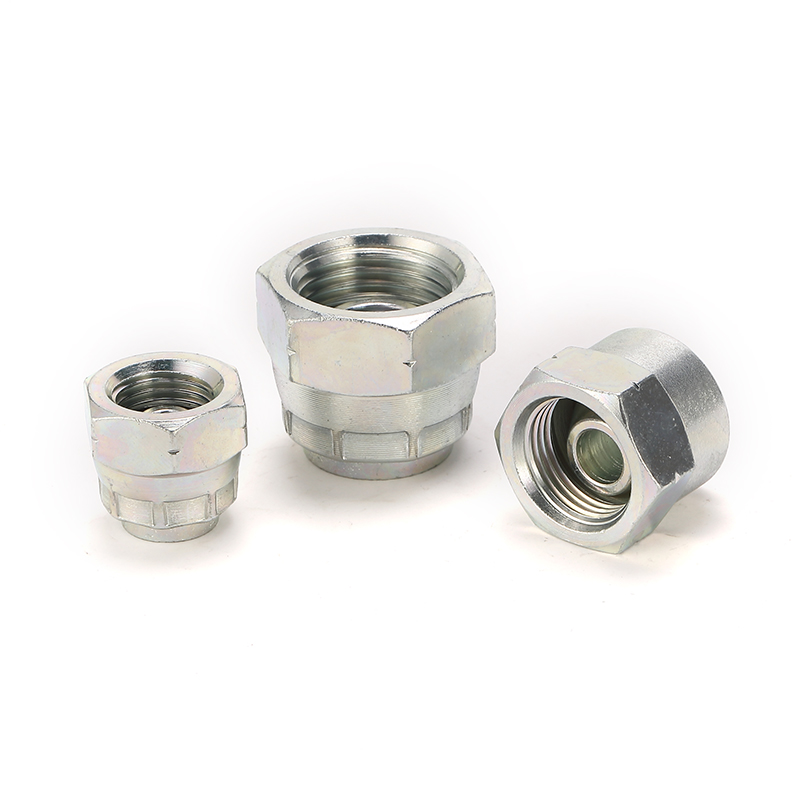

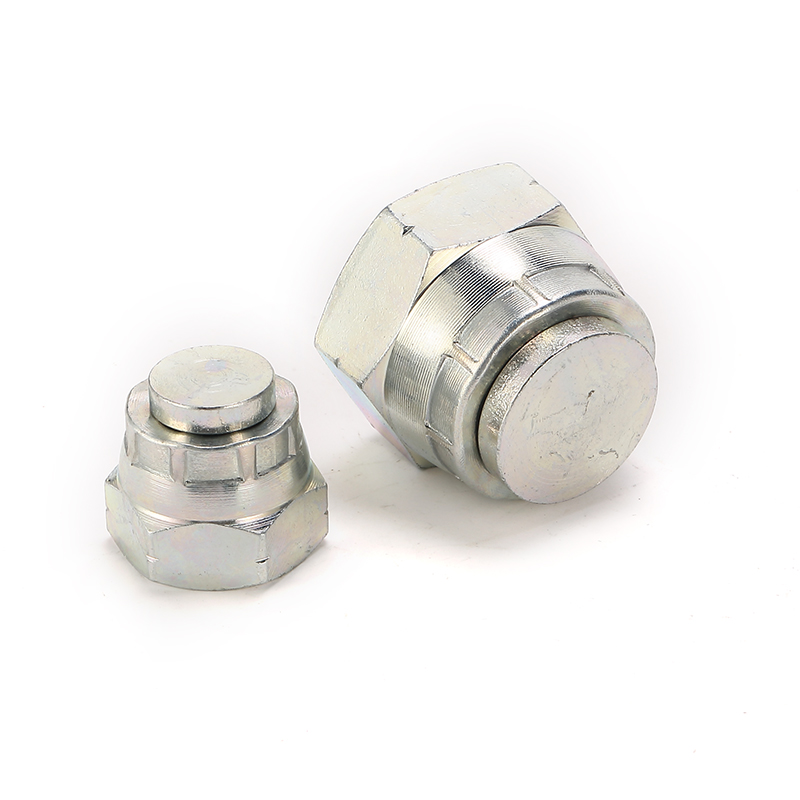

PEHEL | BSP Female 60° Cone Plug, Hydraulic Threaded Plug with 60° Cone Seat, Carbon Steel
PEHEL Hydraulic Model: 9B
QTY:
Type: BSP Female 60° Cone Plug
Thread: BSP Female (BSPP) with 60° Cone Seat
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc‑plated
1.BSP female 60° cone plug designed for sealing BSP male 60° cone ports in hydraulic systems.
2.Female thread provides secure attachment to male threaded components, with the 60° cone face mating to the male cone for reliable sealing.
3.Hex head configuration allows easy tightening and loosening with standard tools.
4.Manufactured from high‑strength carbon steel with anti‑rust surface treatment for durability.
5.Precision machined threads and cone sealing surface ensure a tight, leak‑free closure.
