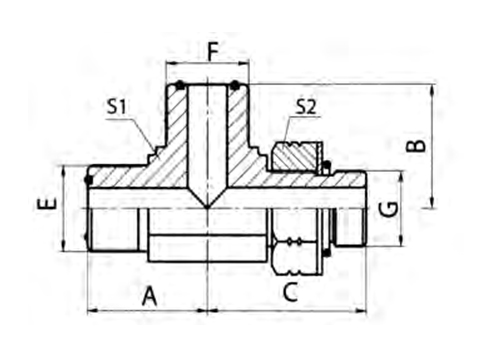

PART NO. THREAD O-RING DIMENSIONS E F G E F G A B C S1 S2 AFFO-04OG 9/16"X18 9/16"X18 7/16"X20 O011 O011 O904 23 23 30 14 17 AFFO-04-04-06OG 9/16"X18 9/16"X18 9/16"X18 O011 O011 O906 23 23 32 14 19 AFFO-06OG 11/16"X16 11/16"X16 9/16"X18 O012 O012 O906 27.5 27.5 35.5 19 19 AFFO-06-06-08OG 11/16"X16 11/16"X16 3/4"X16 O012 O012 O908 27.5 27.5 38 19 24 AFFO-08-08-06OG 13/16"X16 13/16"X16 9/16"X18 O014 O014 O906 31 31 37.5 22 19 AFFO-08OG 13/16"X16 13/16"X16 3/4"X16 O014 O014 O908 31 31 40.5 22 24 AFFO-08-08-10OG 13/16"X16 13/16"X16 7/8"X14 O014 O014 O910 31 31 45.3 22 27 AFFO-08-08-12OG 13/16"X16 13/16"X16 1.1/16"X12 O014 O014 O912 34.5 34.5 52 27 32 AFFO-10OG 1"X14 1"X14 7/8"X14 O016 O016 O910 36.5 36.5 50.8 27 27 AFFO-10-10-12OG 1"X14 1"X14 1.1/16"X12 O016 O016 O912 36.5 36.5 52 27 32 AFFO-12OG 1.3/16"X12 1.3/16"X12 1.1/16"X12 O018 O018 O912 40.3 40.3 55.3 30 32 AFFO-16-16-12OG 1.7/16"X12 1.7/16"X12 1.1/16"X12 O021 O021 O912 44.5 44.5 58.5 36 32 AFFO-16OG 1.7/16"X12 1.7/16"X12 1.5/16"X12 O021 O021 O916 44.5 44.5 59.3 36 41 AFFO-20OG 1.11/16"X12 1.11/16"X12 1.5/8"X12 O025 O025 O920 47.5 47.5 60.5 41 50 AFFO-24OG 2"X12 2"X12 1.7/8"X12 O029 O029 O924 53.5 53.5 68 50 55
ORFS MALE O-RING
PEHEL Hydraulic Model: PAFFO-OG
