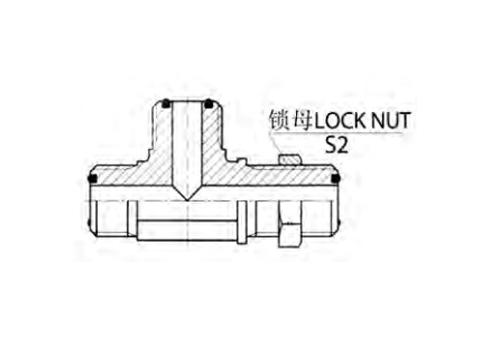

PART NO. THREAD O-RING DIMENSIONS E F G E F G A B C S1 S2 AFF6F-04 9/16"X18 9/16"X18 9/16"X18 O011 O011 O011 23 23 47 14 22 AFF6F-06 11/16"X16 11/16"X16 11/16"X16 O012 O012 O012 27 27 52 19 27 AFF6F-08 13/16"X16 13/16"X16 13/16"X16 O014 O014 O014 31 31 55.5 22 30 AFF6F-10 1"X14 1"X14 1"X14 O016 O016 O016 36.5 36.5 63 27 36 AFF6F-12 1.3/16"X12 1.3/16"X12 1.3/16"X12 O018 O018 O018 41 41 67.2 30 38 AFF6F-16 1.7/16"X12 1.7/16"X12 1.7/16"X12 O021 O021 O021 44.5 44.5 71.2 36 46 AFF6F-20 1.11/16"X12 1.11/16"X12 1.11/16"X12 O025 O025 O025 47.5 47.5 75.5 41 50 AFF6F-24 2"X12 2"X12 2"X12 O029 O029 O029 53.5 53.5 79.5 50 60
PEHEL | ORFS Male O-Ring Bulkhead Run Tee Hydraulic Fitting | Carbon Steel
PEHEL Hydraulic Model: PAFF6F/PAFF6F-LN
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type: Bulkhead Run Tee
Thread Type: ORFS Male Thread with O-Ring Seal
- 11This ORFS Male O-Ring Bulkhead Run Tee hydraulic fitting features reliable O-ring seal to eliminate leakage in high-pressure hydraulic systems.
- 2.Standard ORFS male thread design makes this bulkhead run tee widely compatible with most ORFS hydraulic tubing assemblies.
- 3.Precision machined bulkhead run tee body pairs with ORFS Male O-Ring to offer stable 3-way flow diversion for industrial hydraulics.
- 4.Anti-aging O-ring gasket on this ORFS bulkhead run tee fitting resists hydraulic oil corrosion for long service life.
- 5.Compact ORFS Male O-Ring Bulkhead Run Tee structure saves installation space while maintaining consistent fluid transmission efficiency.
