SAE O-RING BOSS L- SERIES

Model: P5ON

QTY:

  • You May Also Like

  • PART NO.

    THREAD

    O-RING

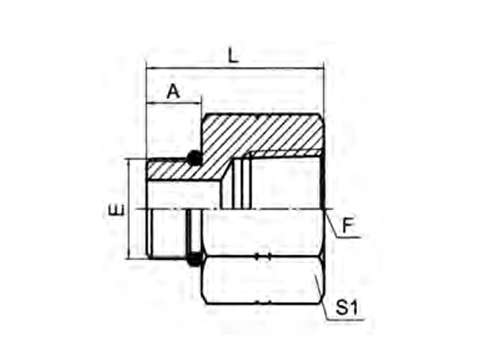

    DIMENSIONS



    E

    F

    E



    A

    L

    S1





    5ON-02

    5/16"X24

    Z1/8"X27

    O902



    7.54

    24.5

    17





    5ON-02-04

    5/16"X24

    Z1/4"Xl8

    O902



    7.54

    29

    19





    5ON-03-02

    3/8"X24

    Z1/8"X27

    O903



    7.54

    24.5

    17





    5ON-03-04

    3/8"X24

    Z1/4"Xl8

    O903



    7.54

    29

    19





    5ON-04-02

    7/16"X20

    Z1/8"X27

    O904



    9.14

    24.5

    17





    5ON-04

    7/16"X20

    Z1/4"Xl8

    O904



    9.14

    29

    19





    5ON-04-06

    7/16"X20

    Z3/8"Xl8

    O904



    9.14

    30.5

    22





    5ON-05-02

    1/2"X20

    Z1/8"X27

    O905



    9.14

    26

    17





    5ON-06-04

    9/16"X18

    Z1/4"Xl8

    O906



    9.93

    31.5

    19





    5ON-08-04

    3/4"X16

    Z1/4"Xl8

    O908



    11.13

    32.5

    22





    5ON-08-06

    3/4"X16

    Z3/8"Xl8

    O908



    11.13

    34

    22





    5ON-08

    3/4"X16

    Z1/2"X14

    O908



    11.13

    40

    30





    5ON-08-12

    3/4"X16

    Z3/4"Xl4

    O908



    11.13

    40

    36





    5ON-10-08

    7/8"X14

    Z1/2"X14

    O910



    12.7

    41.5

    30





    5ON-10-06

    7/8"X14

    Z3/8"Xl8

    O910



    12.7

    35.5

    27





    5ON-10-12

    7/8"X14

    Z3/4"Xl4

    O910



    12.7

    41

    36





    5ON-12-08

    1.1/16"X12

    Z1/2"Xl4

    O912



    15.1

    42

    32





    5ON-12

    1.1/16"X12

    Z3/4"Xl4

    O912



    15.1

    45.5

    36





    5ON-12-16

    1.1/16"X12

    Z1"X11.5

    O912



    15.1

    50.5

    41





    5ON-16-12

    1.5/16"X12

    Z3/4"Xl4

    O916



    15.1

    43

    38





    5ON-16

    1.5/16"X12

    Z1"X11.5

    O916



    15.1

    51.5

    41





    5ON-20-16

    1.5/8"X12

    Z1"X11.5

    O920



    15.1

    40

    50





    5ON-20

    1.5/8"X12

    Z1.1/4"X11.5

    O920



    15.1

    53.5

    50





    5ON-24-16

    1.7/8"X12

    Z1"X11.5

    O924



    15.1

    34

    55





    5ON-24-20

    1.7/8"X12

    Z1.1/4"X11.5

    O924



    15.1

    48

    55





    5ON-24

    1.7/8"X12

    Z1.1/2"X11.5

    O924



    15.1

    50

    60





    5ON-32

    2.1/2"X12

    2"X11.5

    O932



    15.1

    50

    70
