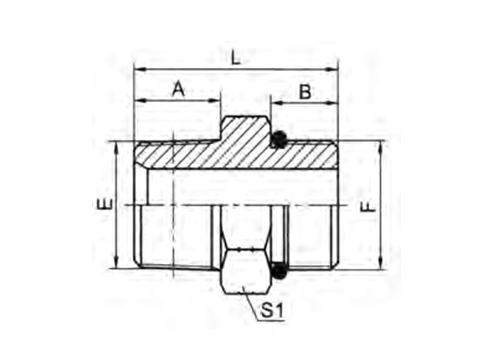

THREAD O-RING DIMENSIONS PART NO. E F F A B L S1 1NO-04 Z1/4"X18 7/16"X20 O904 15 9.14 30 14 1NO-04-06 Z1/4"X18 9/16"X18 O906 15 9.93 31 17 1NO-06-04 Z3/8"X18 7/16"X20 O904 16 9.14 33.5 19 1NO-06 Z3/8"X18 9/16"X18 O906 16 9.93 32 19 1NO-06-08 Z3/8"X18 3/4"X16 O908 16 11.13 35.5 22 1NO-08 Z1/2"X14 3/4"X16 O908 19.5 11.13 38.5 22 1NO-08-10 Z1/2"X14 7/8"X14 O910 19.5 12.7 42 27 1NO-08-12 Z1/2"X14 1.1/16"X12 O912 19.5 15.1 45.5 32 1NO-12-10 Z3/4"X14 7/8"X14 O910 19.5 12.7 43 30 1NO-12 Z3/4"X14 1.1/16"X12 O912 19.5 15.1 45.5 32 1NO-16 Z1"X11.5 1.5/16"X12 O916 25.5 15.1 51.5 38 1NO-20-16 Z1.1/4"X11.5 1.5/16"X12 O916 26.5 15.1 54.5 46 1NO-20 Z1.1/4"X11.5 1.5/8"X12 O920 26.5 15.1 56.5 50 1NO-24 Z1.1/2"X11.5 1.7/8"X12 O924 27.5 15.1 57.5 55
Pehel | NPT Male to SAE O-Ring Boss L-Series Adapter (SAE J1926)
PEHEL Hydraulic Model: P1NO
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
- 1.Leak-proof O-ring sealing – The SAE ORB adapter end uses straight threads plus an O-ring boss seal (SAE J1926), eliminating the leaks common with tapered pipe threads.
- 2.Dual-standard connectivity – Bridges NPT male pipe threads and SAE O-ring boss ports in one NPT to SAE adapter, ideal for mixed American hydraulic systems.
- 3.Precision L-series threads – L-series stud ends machined to ISO 11926-3 with UNF straight threads deliver a secure, reusable O-ring boss fitting.
- 4.Corrosion-resistant build – Carbon steel or stainless steel with silver zinc plating keeps this SAE straight thread adapter reliable in harsh environments.
- 5.Easy, repeatable installation – Straight-thread + O-ring design allows repeated assembly without thread sealant or tape, cutting maintenance downtime.
