PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S2 H Per hundred weight Weight per case P20191-36-14T M36X2 22 14 7 41 69 40 P20191-39-16T M39X2 25 16 7 46 73.5 59.3 30 P20191-45-20T M45X2 32 20 8.5 55 85 91.9 15 P20191-52-24T M52X2 40 24 9 60 100 147 10 P20191-64-32T M64X2 50 32 14 75 122.3 5 P20191-90-48T M90X2 76 48 16 100 119 3
Pehel | P20191 | Hydraulic 90º Metric Female Multiseal Hose Fittings
PEHEL Hydraulic Model: P20191-T
QTY:

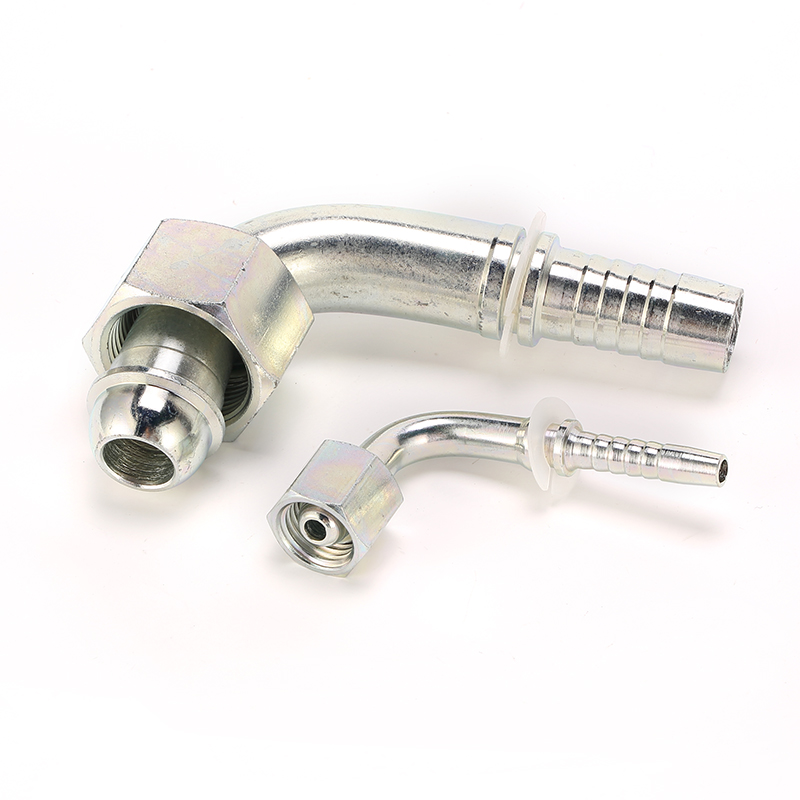

90 Elbow Metric Female Multiseal Steel Hose Fitting 20191
Material: Carbon steel
Brand: Pehel
Color: Silver
Thread: Metric
About the item:
1.90° Elbow Design – Allows tight routing and changes flow direction.
2.Metric Female Threads – Uses metric multiseal threads for leak-free connections.
3.For Wire Braided Hoses – Designed for 1- or 2-wire braided hydraulic hoses.
4.Wide Material Range – Available in carbon steel, stainless steel, or brass.
5. Zinc-Plated Finish – Provides good corrosion resistance and durability.
