Parameter Details Type Monoblock valve Ports A-B = 3/8" G, P-T = 1/2" G Connection Series connection Relief Valve (RV) Optional (with / without / prearranged) Control Options V = handwheel, F = by key, P = plastic knob Spring Pressure Ranges 0 = 5–50 bar, 1 = 30–100 bar, 2 = 50–210 bar, 3 = 100–350 bar Number of Elements 2, 3, 4, or 5 Port Size Code 38 = 3/8" G
Pehel/PHMS103..38/Hydraulic Oil Manifold Block

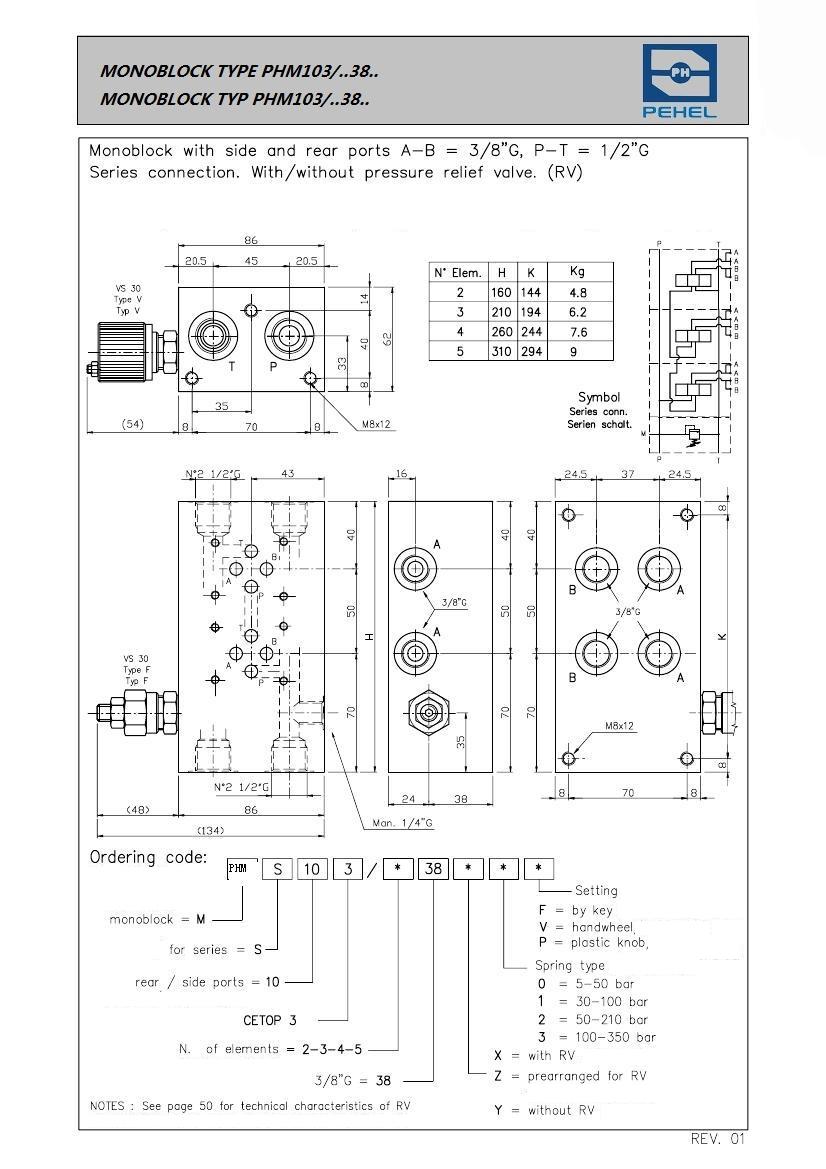

PEHEL Hydraulic Model: PHMS103..38
QTY:
- 1. Monoblock with side and rear ports A-B=3/8”G, and P-T=1/2”G
2. Series connection.
3. With / without pressure relief valve. (RV)
4. Superior in quality and competitive in price
5. Scientific design and precise manufacturing Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Oxidation
About the item:
1. Compact manifold block – integrates multiple valve functions into one unit.
2. Customizable oil blocks – tailored porting for specific hydraulic circuits.
3. Leak-free design – precision-machined mating surfaces reduce external leakage.
4. High-strength material – forged steel or aluminum withstands extreme pressures.
5. Space & weight saving – eliminates bulky piping and simplifies system layout.
