PART NO.
THREAD
O-RING

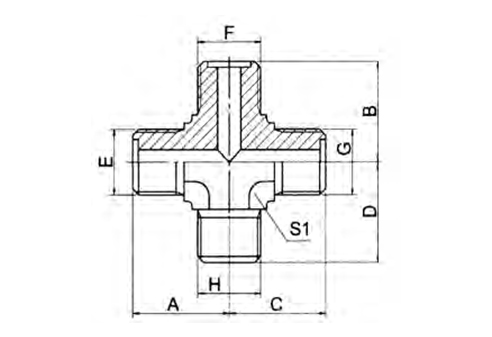

DIMENSIONS
E、F、G、H
E、F、G、H
A
B
C
D
S1
XE-14
M14X1.5
10X2
22.5
22.5
22.5
22.5
14
XE-16
M16X1.5
11X1.9
24
24
24
24
17
XE-18
M18X1.5
13X2
26
26
26
26
19
XE-22
M22X1.5
16.1X2.4
29
29
29
29
22
XE-27
M27X1.5
20.1X2.4
32.5
32.5
32.5
32.5
27
XE-30
M30X1.5
24.1X2.4
35.5
35.5
35.5
35.5
30
XE-36
M36X2
30X3.1
42
42
42
42
36
XE-39
M39X2
32X3.1
47.5
47.5
47.5
47.5
41
XE-42
M42X2
35X3.1
49.5
49.5
49.5
49.5
41
XE-45
M45X2
38X3.1
52.5
52.5
52.5
52.5
46
XE-52
M52X2
40X3.1
57
57
57
57
50
Metric Male O-ring Cross
PEHEL Hydraulic Model: PXE
