PART NO.
THREAD
O-RING
DIMENSIONS
E、F、G
E、G
A
B
C
S1
S2
BE-14
M14X1.5
10X2
22.5
8.5
22.5
14
19
BE-16
M16X1.5
11X1.9
24
8.5
24
17
22
BE-18
M18X1.5
13X2
26
8.5
26
19
24
BE-22
M22X1.5
16.1X2.4
29
10
29
22
27
BE-27
M27X1.5
20.1X2.4
32.5
10
32.5
27
32
BE-30
M30X1.5
24.1X2.4
35.5
11
35.5
30
36
BE-36
M36X2
30X3.1
42
13
42
36
41
BE-39
M39X2
32X3.1
47.5
13
47.5
41
46
BE-42
M42X2
35X3.1
49.5
15
49.5
41
50
BE-45
M45X2
38X3.1
52.5
15
52.5
46
55
BE-52
M52X2
40X3.1
57
17
57
50
60

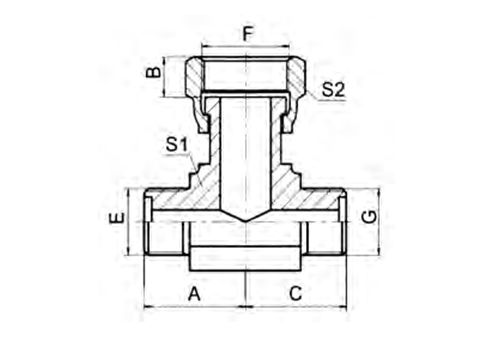

Metric O-ring Tee
PEHEL Hydraulic Model: PBE
QTY:
