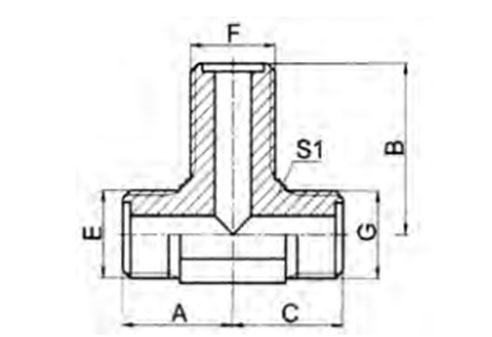

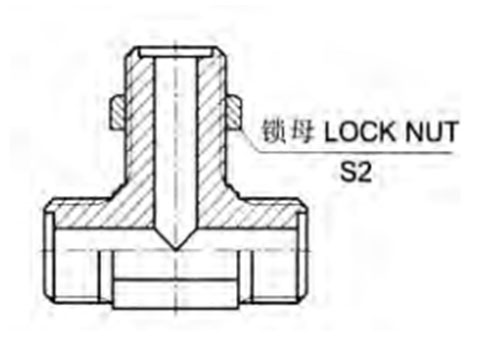

METRIC MALE O-RING BULKHEAD BRANCH TEE

Model: PAE6EE/PAE6EE-LN

QTY:

  • You May Also Like

  • PART NO.

    THREAD

    O-RING

    DIMENSIONS



    EFG



    E、F、G



    A

    B

    C

    S1

    S2

    AE6EE-12

    M12X1.25



    8X1.9



    20.5

    44.5

    20.5

    12

    17

    AE6EE-14

    M14X1.5



    10X2



    22.5

    46.5

    22.5

    14

    19

    AE6EE-16

    M16X1.5



    11X1.9



    24

    48

    24

    17

    22

    AE6EE-18

    M18X1.5



    13X2



    26

    50

    26

    19

    24

    AE6EE-22

    M22X1.5



    16.1X2.4



    29

    54

    29

    22

    30

    AE6EE-27

    M27X1.5



    20.1X2.4



    32.5

    58.5

    32.5

    27

    36

    AE6EE-30

    M30X1.5



    24.1X2.4



    35.5

    61.5

    35.5

    30

    41

    AE6EE-36

    M36X2



    30X3.1



    42

    71

    42

    36

    46

    AE6EE-39

    M39X2



    32X3.1



    47.5

    76

    47.5

    41

    50

    AE6EE-42

    M42X2



    35X3.1



    49.5

    78

    49.5

    41

    50

    AE6EE-45

    M45X2



    38X3.1



    52.5

    81

    52.5

    46

    55
