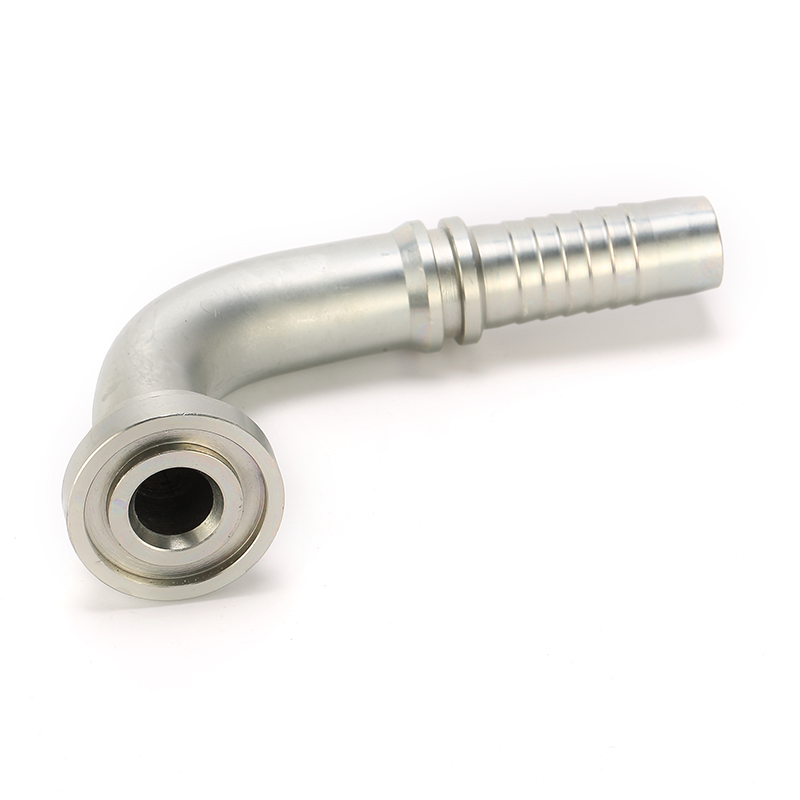

PEHEL | 90° 6000 PSI Flange Elbow, Heavy Duty Hydraulic Fitting with SAE Flange

PEHEL | 90° 6000 PSI Flange Elbow, Heavy Duty Hydraulic Fitting with SAE Flange

PEHEL Hydraulic Model: P87691-PKAST

QTY:

New design 90 degree elbow code 62 sae hydraulic flange one piece fitting

    • Type: 90° SAE Flange Fitting

    • Pressure Rating: 6000 PSI

    • Material: Carbon steel

    • Brand: PEHEL, OEM

    • Surface Treatment: Zinc‑plated


      1. 1.90° hydraulic elbow fitting with SAE flange connection, rated for 6000 PSI.

      2. 2.Flange end provides a secure, leak-free interface when mated with corresponding flange components.

      3. 3.90° elbow configuration allows directional changes in hydraulic systems.

      4. 4.Manufactured from high-strength carbon steel with anti-rust surface treatment for durability.

      5. 5.Precision machined flange face and threads ensure reliable sealing and consistent assembly.

  • Specification
  • You May Also Like
  • PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
    DN DASH A B H F
    87691-12-12PKAST 3/4" 20 12 103 63.9 66 41.3
    87691-16-16PKAST 1" 25 16 122 74.5 74.5 47.6

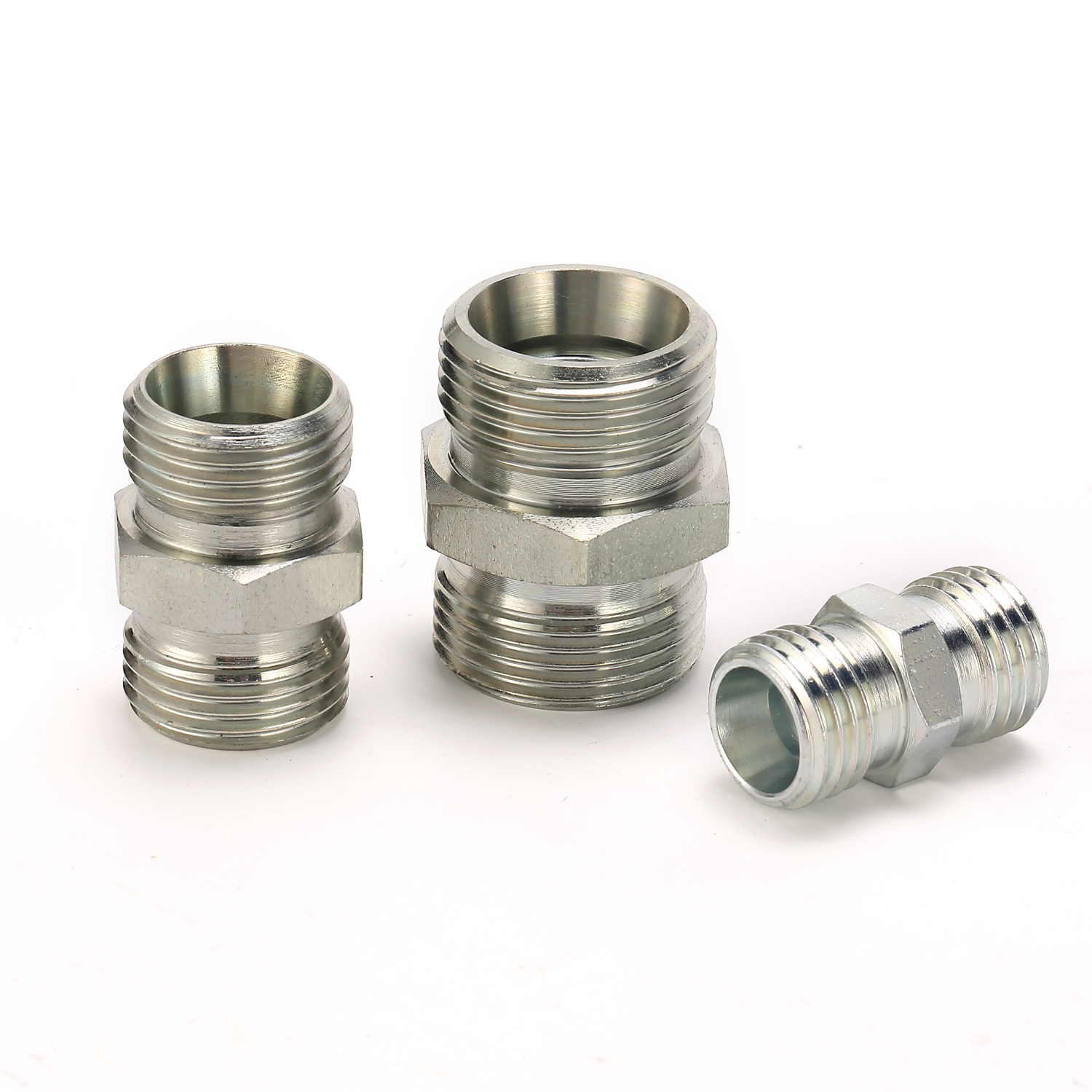

  • PEHEL Male Metric Bulkhead Adapter
    Details

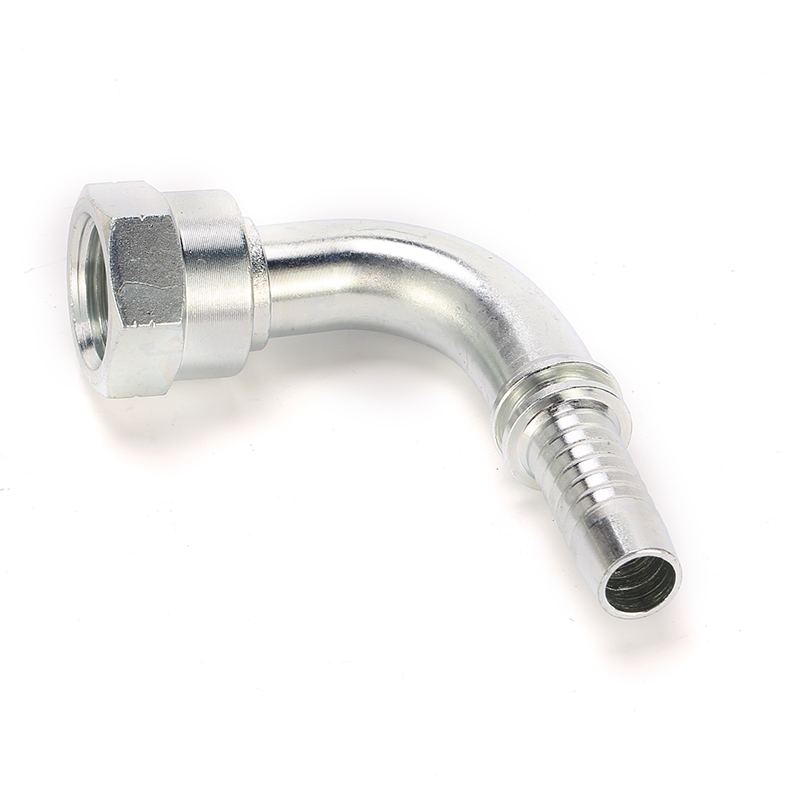

    PEHEL 90deg Elbow Female BSP 60deg Cone Hydraulic Hose Fitting
