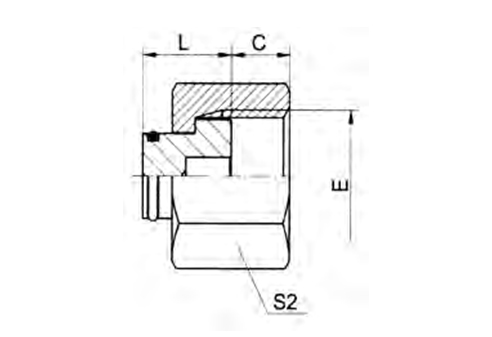

PART NO.
THREAD
DIMENSIONS
E
C
L
S2
9E-12
M12X1.25
8
10
17
9E-14
M14X1.5
8.5
10.5
19
9E-16
M16X1.5
8.5
11.5
22
9E-18
M18X1.5
8.5
13
24
9E-22
M22X1.5
10
13
27
9E-27
M27X1.5
10
15
32
9E-30
M30X1.5
11
15
36
9E-36
M36X2
13
15.5
41
9E-39
M39X2
13
17.5
46
9E-42
M42X2
15
18.5
50
9E-45
M45X2
15
18.5
55
9E-52
M52X2
17
18.5
60
Metric Female Face Plug
PEHEL Hydraulic Model: P9E
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: Straight
Thread Type: Metric Flat Seal
About the item:
1.Hose adapter ensures secure, leak-proof connections between flexible hoses and rigid tubing, minimizing system downtime.
2.As a reliable hydraulic adapter, it withstands high-pressure surges and vibration in demanding hydraulic circuits.
3.This hose connector features precision sealing surfaces that guarantee consistent performance even under fluctuating temperatures.
4.Available with Metric flat thread (ISO 6149) for leak-free port connections, utilizing O-ring face seal design for superior sealing integrity.
5.Compatible with both light and heavy series Metric threads, offering flexible adaptation to European and Asian standard hydraulic systems.
