PART NO.
THREAD
O-RING

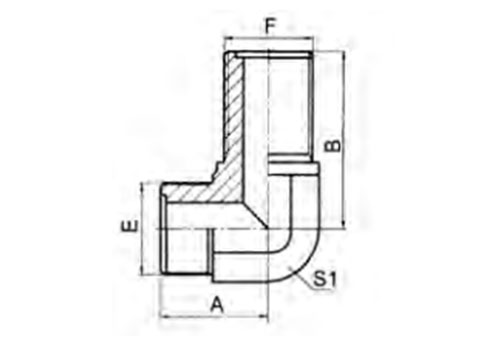

DIMENSIONS
E
F
E
F
A
B
S1
S2
6E9-12
M12X1.25
M12X1.25
8X1.9
8X1.9
20.5
44.5
12
17
6E9-14
M14X1.5
M14X1.5
10X2
10X2
22.5
46.5
14
19
6E9-16
M16X1.5
M16X1.5
11X1.9
11X1.9
24
48
17
22
6E9-18
M18X1.5
M18X1.5
13X2
13X2
26
50
19
24
6E9-22
M22X1.5
M22X1.5
16.1X2.4
16.1X2.4
29
54
22
30
6E9-27
M27X1.5
M27X1.5
20.1X2.4
20.1X2.4
32.5
58.5
27
36
6E9-30
M30X1.5
M30X1.5
24.1X2.4
24.1X2.4
35.5
61.5
30
41
6E9-36
M36X2
M36X2
30X3.1
30X3.1
42
71
36
46
6E9-39
M39X2
M39X2
32X3.1
32X3.1
47.5
76
41
50
6E9-42
M42X2
M42X2
35X3.1
35X3.1
49.5
78
41
50
6E9-45
M45X2
M45X2
38X3.1
38X3.1
52.5
81
46
55
6E9-52
M52X2
M52X2
40X3.1
40X3.1
57
86
50
65
90° Elbow Metric Male O-ring Bulkhead
PEHEL Hydraulic Model: P6E9/P6E9-LN
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: Elbow Bulkhead
Thread Type: Metric O-ring
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Secure Panel Installation – Designed as a metric bulkhead elbow, allowing clean and stable mounting through panels or tank walls.
2.Zero-Leak O-Ring Seal – Precision-machined male O-ring fitting groove ensures leak-free performance in high-pressure hydraulic circuits.
3.Dual Material Options – Choose from zinc-plated carbon steel bulkhead connector for cost efficiency or stainless steel for maximum corrosion resistance.
4.Space-Saving 90° Turn – Compact hydraulic bulkhead adapter design redirects flow efficiently without kinking hoses in tight compartments.
5.Superior Surface Finish – Silver zinc plating enhances durability and provides excellent protection against rust and harsh industrial chemicals.
