Straight Reducers-P1D

Model: P1D

QTY:

  • You May Also Like

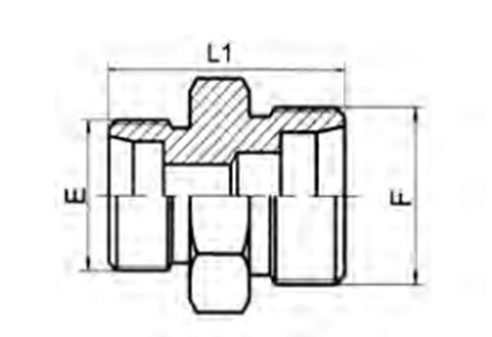

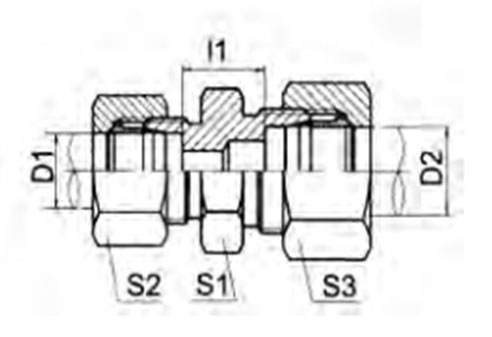

  • PART NO. THREAD TUBE O.D DIMENSIONS MPa
    E F D1 D2 l1 L1 S1 S2 S3
    P1D-14 M14X1.5 M14X1.5 6 6 16 45 14 17 17 63
    S
    P1D-16 M16X1.5 M16X1.5 8 8 18 47 17 19 19
    P1D-18 M18X1.5 M18X1.5 10 10 17 49 19 22 22
    P1D-20 M20X1.5 M20X1.5 12 12 19 51 22 24 24
    P1D-22 M22X1.5 M22X1.5 14 14 22 57 24 27 27
    P1D-24 M24X1.5 M24X1.5 16 16 21 57 27 30 30 40
    S
    P1D-30 M30X2 M30X2 20 20 23 66 32 36 36
    P1D-36 M36X2 M36X2 25 25 26 74 41 46 46
    P1D-42 M42X2 M42X2 30 30 27 80 46 50 50
    P1D-52 M52X2 M52X2 38 38 29 90 55 60 60 31.5S
    Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix"RN"after our part NO.,for example 1D-30RN
