THREAD TUBE O.D. DIMENSIONS PART NO. MPa E D1,D2,D3 I1,I2,I3 L1,L2,L3 S1 S2,S3,S4 AC-10LL M10X1 6 13.5 19 12 12 10 L AC-12A M12×1 6 12 19 12 14 AC-12 M12×1.5 6 12 19 12 14 25 L AC-14 M14×1.5 8 14 21 12 17 AC-16 M16×1.5 10 15 22 14 19 AC-18 M18×1.5 12 17 24 17 22 AC-22 M22×1.5 15 21 28 19 27 AC-26 M26×1.5 18 23.5 31 24 32 AC-30 M30×2 22 27.5 35 27 36 16 L AC-36 M36x2 28 30.5 38 36 41 AC-45 M45×2 35 34.5 45 41 50 AC-52 M52x2 42 40 51 50 60 AD-14 M14×1.5 6 16 23 12 17 63 S AD-16 M16×1.5 8 17 24 14 19 AD-18 M18×1.5 10 17.5 25 17 22 AD-20 M20×1.5 12 21.5 29 17 24 AD-22 M22×1.5 14 22 30 19 27 AD-24 M24×1.5 16 24.5 33 24 30 40 S AD-30 M30×2 20 26.5 37 27 36 AD-36 M36×2 25 30 42 36 46 AD-42 M42x2 30 35.5 49 41 50 AD-52 M52×2 38 41 57 50 60 31.5 S

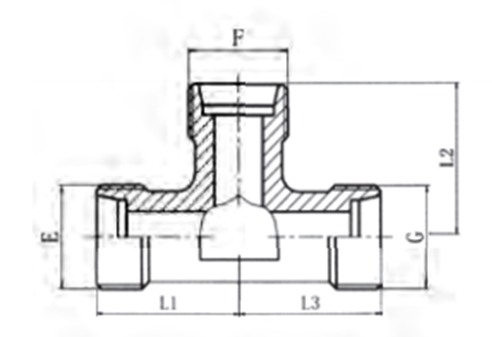

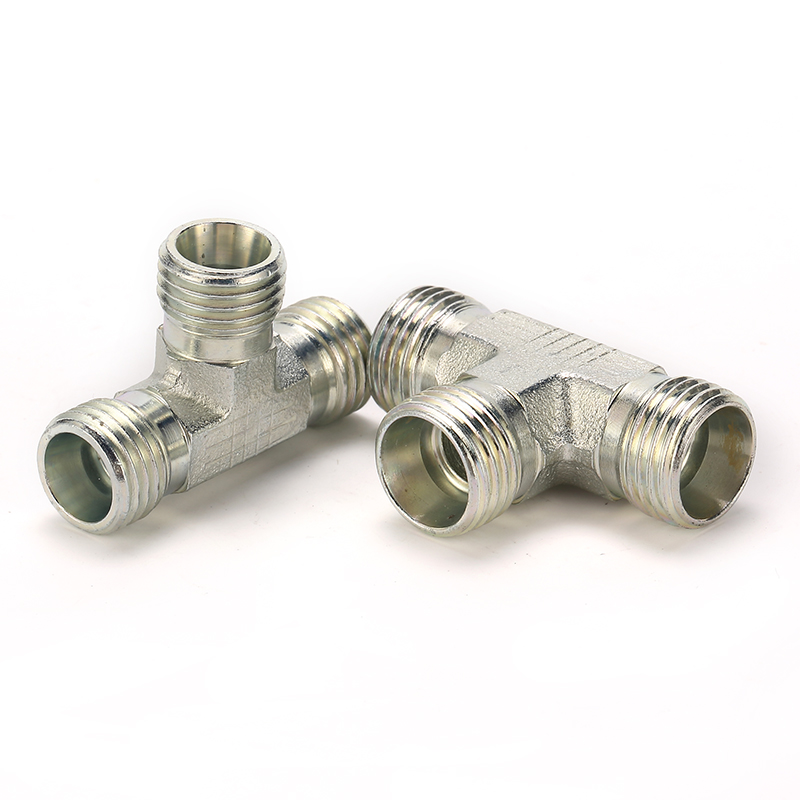

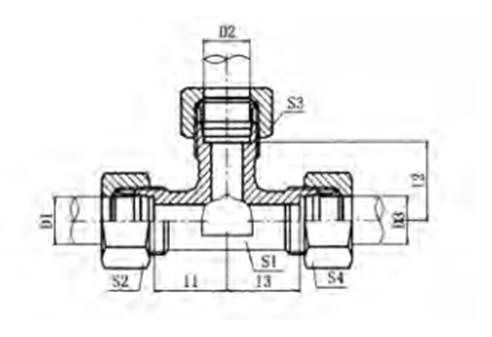

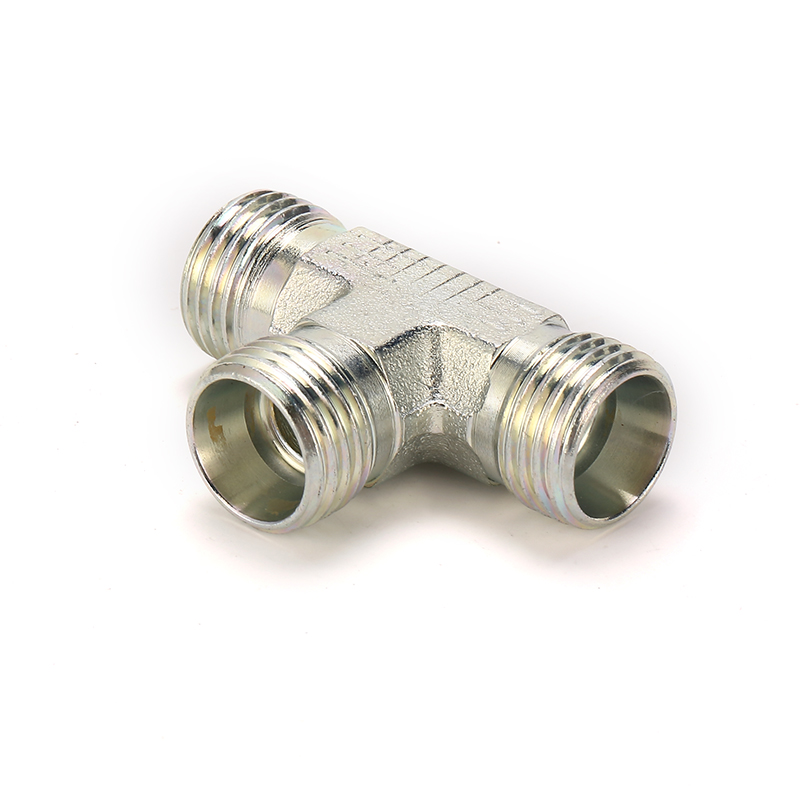

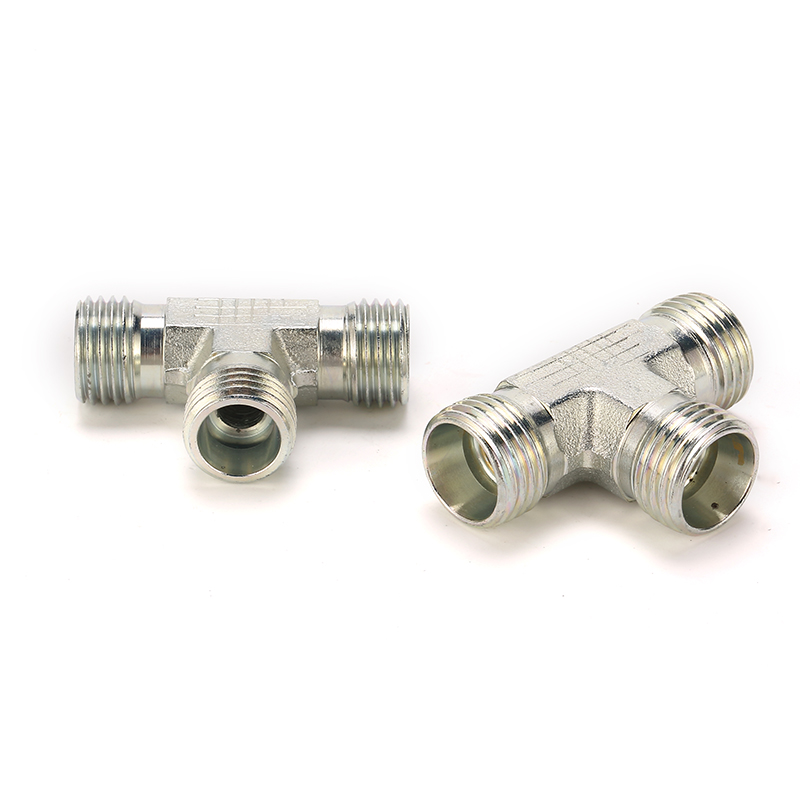

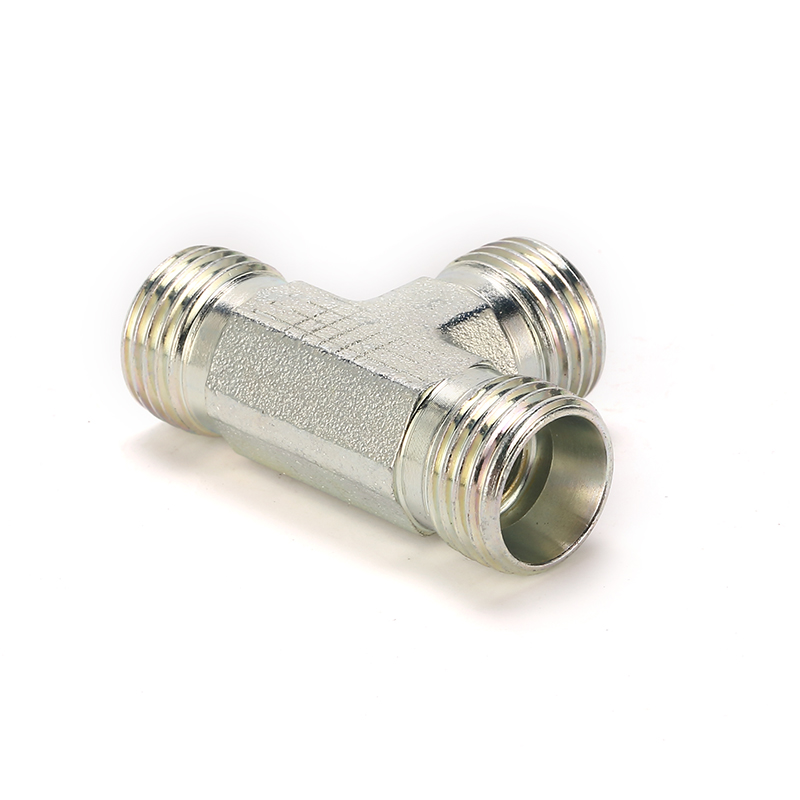

Equal TEE
PEHEL Hydraulic Model: PAC PAD/PAC-RN PAD-RN
QTY:
