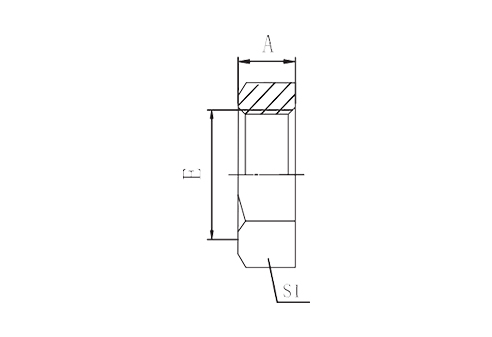

THREAD DIMENSIONS PART NO. E A S1 8C-10 M10×1 6 14 8C-12 M12×1.5 7.5 17 8C-14 M14×1.5 7.5 19 8C-16 M16×1.5 7.5 22 8C-18 M18×1.5 7.5 24 8C-20 M20×1.5 8 27 8C-22 M22×1.5 8 27 8C-24 M24×1.5 8 30 8C-26 M26×1.5 8 32 8C-27D M27×1.5 10 32 8C-30 M30×2 10 36 8C-30D M30×1.5 10 36 8C-33 M33×2 10 41 8C-36 M36×2 10 41 8C-39 M39×2 10 46 8C-42 M42×2 10 50 8C-45 M45×2 10 55 8C-52 M52×2 10 60
PEHEL/Metric Lock Nut
PEHEL Hydraulic Model: P8C
QTY:
Metric Lock Nut
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: LOCK NUT
Thread Type: METRIC
About the item:
1. 8C is metric hex lock nut, supporting bulk‑mount fastening for DIN2353 bite‑type hydraulic tube fittings.
2. Precision‑tapped metric internal threads deliver firm clamping force against vibration in high‑pressure hydraulic circuits.
3. Complete thread range covers M10×1 up to M52×2, matching most standard metric bulkhead fitting specifications.
4. Precisely machined carbon‑steel body with zinc‑plated finish, offering wear‑resistance and reliable interchangeability.
5. Essential mounting accessory widely used for panel installation on industrial and mobile metric hydraulic pipeline systems.
