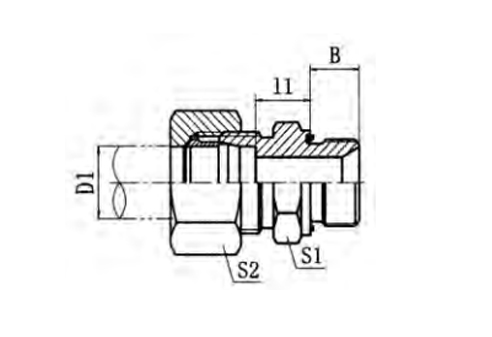

THREAD D1 DIMENSIONS PART NO. SEAL MPa E F TUBE O.D. B I1 L S1 S2 1CM-12-10WD M12X1.5 M10X1 6 WD-B02 8 9.5 24.5 14 14 31.5 L 1CM-14-12WD M14X1.5 M12X1.5 8 WD-M12 12 10.5 29.5 17 17 1CM-16-12WD M16X1.5 M12X1.5 10 WD-M12 12 11 30 17 19 1CM-16-14WD M16X1.5 M14X1.5 10 WD-B04 12 10 29 19 19 1CM-16-18WD M16X1.5 M18X1.5 10 WD-M18 12 12.5 31.5 24 19 1CM-18-16WD M18X1.5 M16X1.5 12 WD-M16 12 12.5 31.5 22 22 1CM-18WD M18X1.5 M18X1.5 12 WD-M18 12 12.5 31.5 24 22 1CM-18-22WD M18X1.5 M22X1.5 12 WD-M22 14 14 35 27 22 1CM-22-18WD M22X1.5 M18X1.5 15 WD-M18 12 14 33 24 27 1CM-22WD M22X1.5 M22X1.5 15 WD-M22 14 15 36 27 27 1CM-26-22WD M26X1.5 M22X1.5 18 WD-M22 14 14.8 36.3 27 32 1CM-30-26WD M30X2 M26X1.5 22 WD-B12 16 16.5 40 32 36 16 L 1CM-30-27WD M30X2 M27X2 22 WD-B12 16 16.5 40 32 36 1CM-36-33WD M36X2 M33X2 28 WD-B16 18 17.5 43 41 41 1CM-45-42WD M45X2 M42X2 35 WD-B20 20 17.5 48 50 50 1CM-52-48WD M52X2 M48X2 42 WD-B24 22 20 53 55 60 1DM-14-12WD M14X1.5 M12X1.5 6 WD-M12 12 13 32 17 17 63 S 1DM-16-14WD M16X1.5 M14X1.5 8 WD-B04 12 15 34 19 19 1DM-18-16WD M18X1.5 M16X1.5 10 WD-M16 12 14.5 34 22 22 1DM-20-18WD M20X1.5 M18X1.5 12 WD-M18 12 17 36.5 24 24 1DM-22-20WD M22X1.5 M20X1.5 14 WD-M20 14 19 41 27 27 1DM-24-22WD M24X1.5 M22X1.5 16 WD-M22 14 18.5 41 27 30 40 S 1DM-30-27WD M30X2 M27X2 20 WD-B12 16 20.5 47 32 36 1DM-36-33WD M36X2 M33X2 25 WD-B16 18 23 53 41 46 1DM-42WD M42X2 M42X2 30 WD-B20 20 23.5 57 50 50 1DM-52-48WD M52X2 M48X2 38 WD-B24 22 26 64 55 60 31.5 S
Metric Thread with Captive Seal
PEHEL Hydraulic Model: P1CM-WD P1DM-WD/P1CM-WD/RN P1DM-WD/RN
