PART NO.
THREAD TUBE O.D. DIMENSIONS E F D L1 L2 S1 P1DT9-14-04SP M14X1.5 R1/4"X19 6 25.8 25.5 14 P1DT9-16-04SP M16X1.5 R1/4"X19 8 27 26.5 16 P1DT9-18-06SP M18X1.5 R3/8"X19 10 28.5 30.5 19 P1DT9-20-04SP M20X1.5 R1/4"X19 12 28.5 28 19 P1DT9-20-06SP M20X1.5 R3/8"X19 12 28.5 30.5 19 P1DT9-22-06SP M22X1.5 R3/8"X19 14 31.2 32.5 22 P1DT9-22-08SP M22X1.5 R1/2"X14 14 31.2 36 22 P1DT9-24-06SP M24X1.5 R3/8"X19 16 32.2 33.5 24 P1DT9-24-08SP M24X1.5 R1/2"X14 16 32.2 37.3 24 P1DT9-30-12SP M30X2 R3/4"X14 20 41.5 45.3 30 P1DT9-36-16SP M36X2 R1"X11 25 46.5 52.5 36 P1DT9-42-16SP M42X2 R1"X11 30 49.5 56.5 41 P1DT9-42-20SP M42X2 R1.1/4"X11 30 49.5 56.5 41 P1DT9-52-20SP M52X2 R1.1/4"X11 38 61.5 67 55 P1DT9-52-24SP M52X2 R1.1/2"X11 38 61.5 68 55

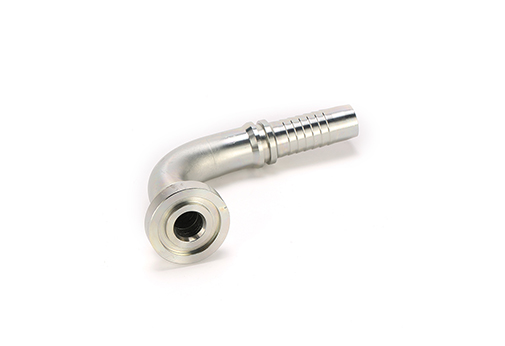

90° Elbow Adapter with BSPT Male Thread, Carbon Steel / Stainless Steel, Zinc Plated
PEHEL Hydraulic Model: P1DT9-SP
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
- 1.90° elbow BSPT male adapter — carbon steel body for hydraulic connections.
- 2.Stainless steel elbow adapter option for corrosion-resistant service in harsh environments.
- 3.Silver zinc plating protects the BSPT thread surface and extends service life.
- 4.90° design saves space and reroutes flow in tight pipe layouts.
- 5.Tapered BSPT male thread (ISO 7-1) delivers a secure, wrench-tight seal.
- 6.Available under Pehel brand or OEM production for your adapter sourcing needs.
