PART NO.

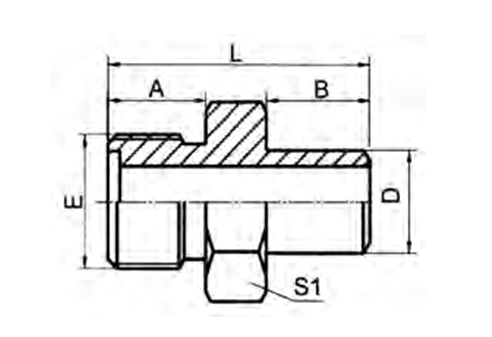

THREAD DIMENSIONS E F TUBE O.D. L S P1CM-12-10WD M12X1.5 M10X1 6 23.5 14 P1CM-14-12WD M14X1.5 M12X1.5 8 29 17 P1CM-16-12WD M16X1.5 M12X1.5 10 30 17 P1CM-16-14WD M16X1.5 M14X1.5 10 30 19 P1CM-16-18WD M16X1.5 M18X1.5 10 31.5 24 P1CM-18-16WD M18X1.5 M16X1.5 12 31 22 P1CM-18WD M18X1.5 M18X1.5 12 31.5 24 P1CM-18-22WD M18X1.5 M22X1.5 12 35 27 P1CM-22-18WD M22X1.5 M18X1.5 15 32.5 24 P1CM-22WD M22X1.5 M22X1.5 15 36 27 P1CM-26-22WD M26X1.5 M22X1.5 18 34 27 P1CM-30-26WD M30X2 M26X1.5 22 40 32 P1CM-30-27WD M30X2 M27X1.5 22 42 32 P1CM-36-33WD M36X2 M36X2 28 41 41 P1CM-45-42WD M45X2 M42X2 35 41 50 P1CM-52-48WD M52X2 M52X2 42 52 55
Metric Thread Fitting With Captive Seal | Zinc Plated Hydraulic Parts
PEHEL Hydraulic Model: P1CM-WD
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver zinc plating
Connector Type: Metric Thread Captive Seal Hydraulic Connector
Thread Type: Metric Thread, Built-in Captive Seal
About the item:
- 1.This metric thread connector comes with captive seal, forming tight sealing to avoid oil leakage in hydraulic systems.
- 2.The metric hydraulic fitting with captive seal is available in carbon steel and stainless steel to satisfy different industrial usage scenarios.
- 3.Adopting silver zinc plating surface treatment, our metric thread adaptor with captive seal features strong rust and corrosion resistance.
- 4.We support Pehel brand supply and OEM customization for metric captive seal connectors, meeting personalized hydraulic assembly demands.
- 5.Integrated captive seal structure simplifies installation of this metric hydraulic fitting, no extra gaskets required during pipeline assembly.
