THREAD DIMENSIONS PART NO. E,F,G,H A,B,C,D S1 XJ-04 7/16"X20 24.5 11 XJ-05 1/2"×20 26.5 14 XJ-06 9/16"X18 26.9 14 XJ-08 3/4"X16 32 19 XJ-10 7/8"X14 37.8 22 XJ-12 1.1/16"X12 44.2 27

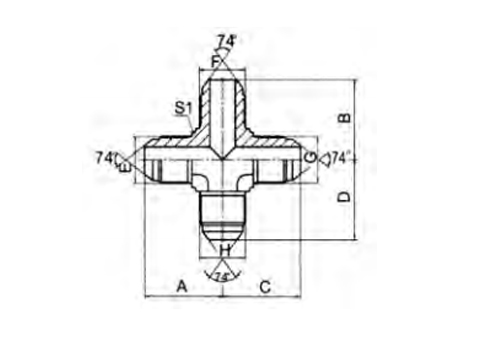

JIC MALE 74° CONE CROSS
PEHEL Hydraulic Model: PXJ
QTY:
PEHEL Hydraulic Model: PXJ
QTY:
| THREAD | DIMENSIONS | ||||||||
| PART NO. | |||||||||
| E,F,G,H | A,B,C,D | S1 | |||||||
| XJ-04 | 7/16"X20 | 24.5 | 11 | ||||||
| XJ-05 | 1/2"×20 | 26.5 | 14 | ||||||
| XJ-06 | 9/16"X18 | 26.9 | 14 | ||||||
| XJ-08 | 3/4"X16 | 32 | 19 | ||||||
| XJ-10 | 7/8"X14 | 37.8 | 22 | ||||||
| XJ-12 | 1.1/16"X12 | 44.2 | 27 | ||||||
