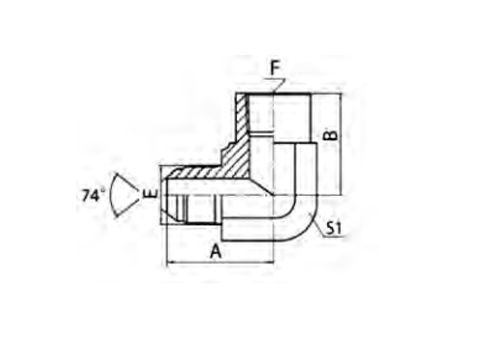

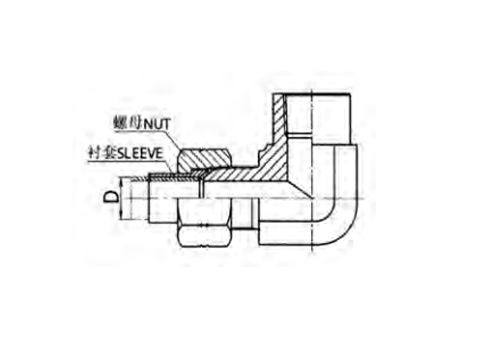

PART NO. THREAD DIMENSIONS E F A B S1 5JN9-04-02 7/16"X20 Z1/8"X27 27.5 16.8 16 5JN9-04 7/16"X20 Z1/4"X18 30.9 22.4 19 5JN9-06-04 9/16"X18 Z1/4"X18 31.2 22.4 19 5JN9-06 9/16"X18 Z3/8"X18 33.5 25.9 24 5JN9-08-04 3/4"X16 Z1/4"X18 31.6 22.4 19 5JN9-08 3/4"X16 Z1/2"X14 39.5 31.2 30 5JN9-12-08 1.1/16"X12 Z1/2"X14 46 31.2 30 5JN9-12 1.1/16"X12 Z3/4"X14 48 34.5 33 5JN9-12-16 1.1/16"X12 Z1"X11.5 52.5 41.1 41 5JN9-16-12 1.5/16"X12 Z3/4"X14 49 34.5 33 5JN9-16 1.5/16"X12 Z1"X11.5 55.1 41.1 41 5JN9-20 1.5/8"X12 Z1.1/4"X11.5 59.2 43.2 48 5JN9-24 1.7/8"X12 Z1.1/2"X11.5 73.4 52.8 63
90° Elbow JIC Male 74° Cone to NPT Female Hydraulic Adapter | Carbon Steel & Stainless Steel Fitting
PEHEL Hydraulic Model: P5JN9
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: JIC,NPT
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Right-angle flow control – 90° elbow design optimizes hose routing and reduces system stress.
2.Dual-standard compatibility – Connects JIC male 74° cone to NPT female threads in one fitting.
3.Material options – Choose carbon steel for strength or stainless steel for chemical and corrosion resistance.
4.Leak prevention – Precision 74° cone seat ensures tight sealing under high pressure.
5.Surface durability – Silver zinc plating protects against rust and extends service life.
6.OEM ready – Custom branding available under Pehel or your own label for market advantage.
