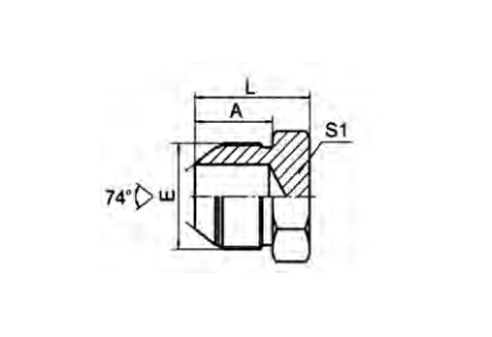

THREAD TUBE O.D. DIMENSIONS PART NO. E D A L S1 S2 4Q-10 M10X1 5 12 18 12 14 4Q-12 M12X1.5 6 15.7 21.5 14 14 4Q-14 M14X1.5 8 17 23 17 17 4Q-16 M16X1.5 10 18 24 17 22 4Q-18 M18X1.5 12 18 24 19 24 4Q-22 M22X1.5 14 19.5 27.5 24 27 4Q-24 M24X1.5 16 20 30 27 30 4Q-27 M27X1.5 18 20 30 30 32 4Q-30 M30X1.5 20 23 34 32 36 4Q-30E M30X2 20 26 37 32 36 4Q-33 M33X2 22 26 37 36 38 4Q-36 M36X2 25 26 38 38 41 4Q-39 M39X2 28 26 39 41 46 4Q-42 M42X2 32 28.5 41.5 46 50 4Q-45 M45X2 34 28.5 41.5 46 55
PEHEL | Metric Male 74° Cone Plug, Hydraulic Threaded Plug with 74° Cone Seat
PEHEL Hydraulic Model: P4Q/P4Q-RN
QTY:
Type: Metric Male 74° Cone Plug
Thread: Metric Male
Sealing: 74° Cone Seat
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc-plated or anti-rust coated
1.Metric male 74° cone plug designed for sealing metric threaded ports in hydraulic systems.
2.Male metric thread allows secure engagement with corresponding female threaded ports.
3.74° cone seat provides metal-to-metal sealing through line contact when mated with a matching cone.
4.Manufactured from high-strength carbon steel with anti-rust surface treatment.
5.Precision machined threads and cone surface ensure consistent fit and reliable sealing.
