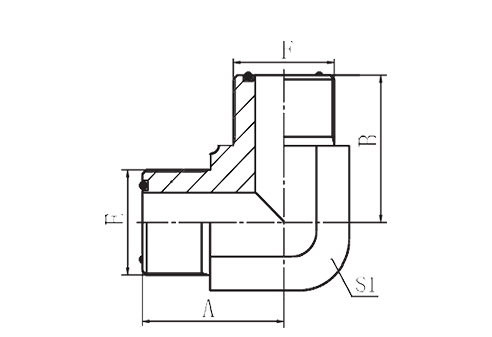

PART NO. THREAD O-RING DIMENSIONS E F E F A B S1 1F9-04 9/16"X18 9/16"X18 O011 O011 23 23 14 1F9-04-06 9/16"×18 11/16"×16 O011 O011 25.5 27 19 1F9-06 11/16"X16 11/16"X16 O012 O012 27.5 27.5 19 1F9-06-08 11/16"×16 13/16"×16 O012 O012 29 31 22 1F9-08 13/16"X16 13/16"X16 O014 O014 31 31 22 1F9-08-12 13/16"×16 1.3/16"X12 O014 O014 35.5 40.3 30 1F9-10 1"×14 1"X14 O016 O016 36.5 36.5 27 1F9-12 1.3/16"×12 1.3/16"X12 O018 O018 41 41 30 1F9-16 1.7/16"×12 1.7/16"X12 O021 O021 44.5 44.5 36 1F9-20 1.11/16"×12 1.11/16"×12 O025 O025 47.5 47.5 41 1F9-24 2"×12 2"×12 O029 O029 53.5 53.5 50
90° ELBOW ORFS MALE O-RING

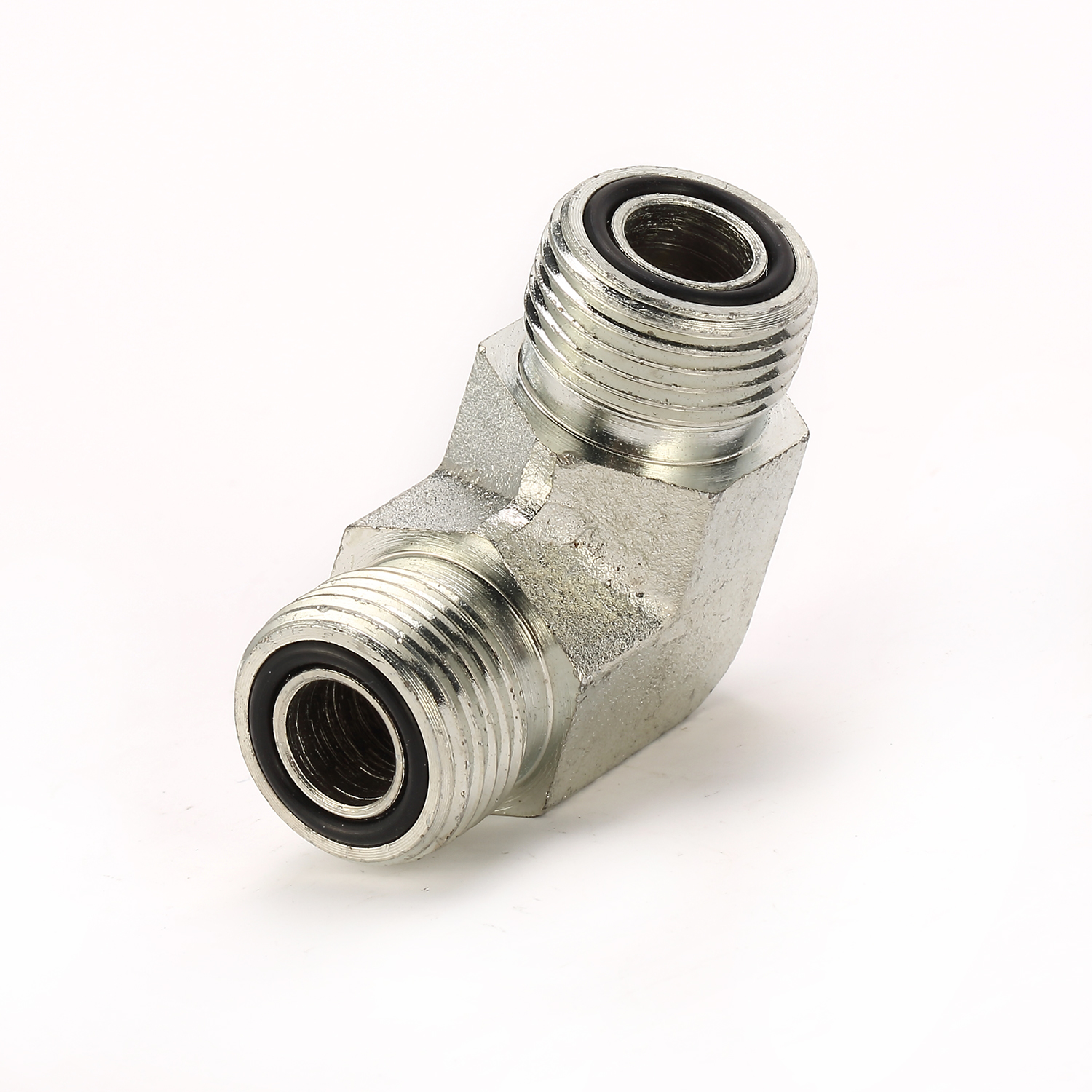

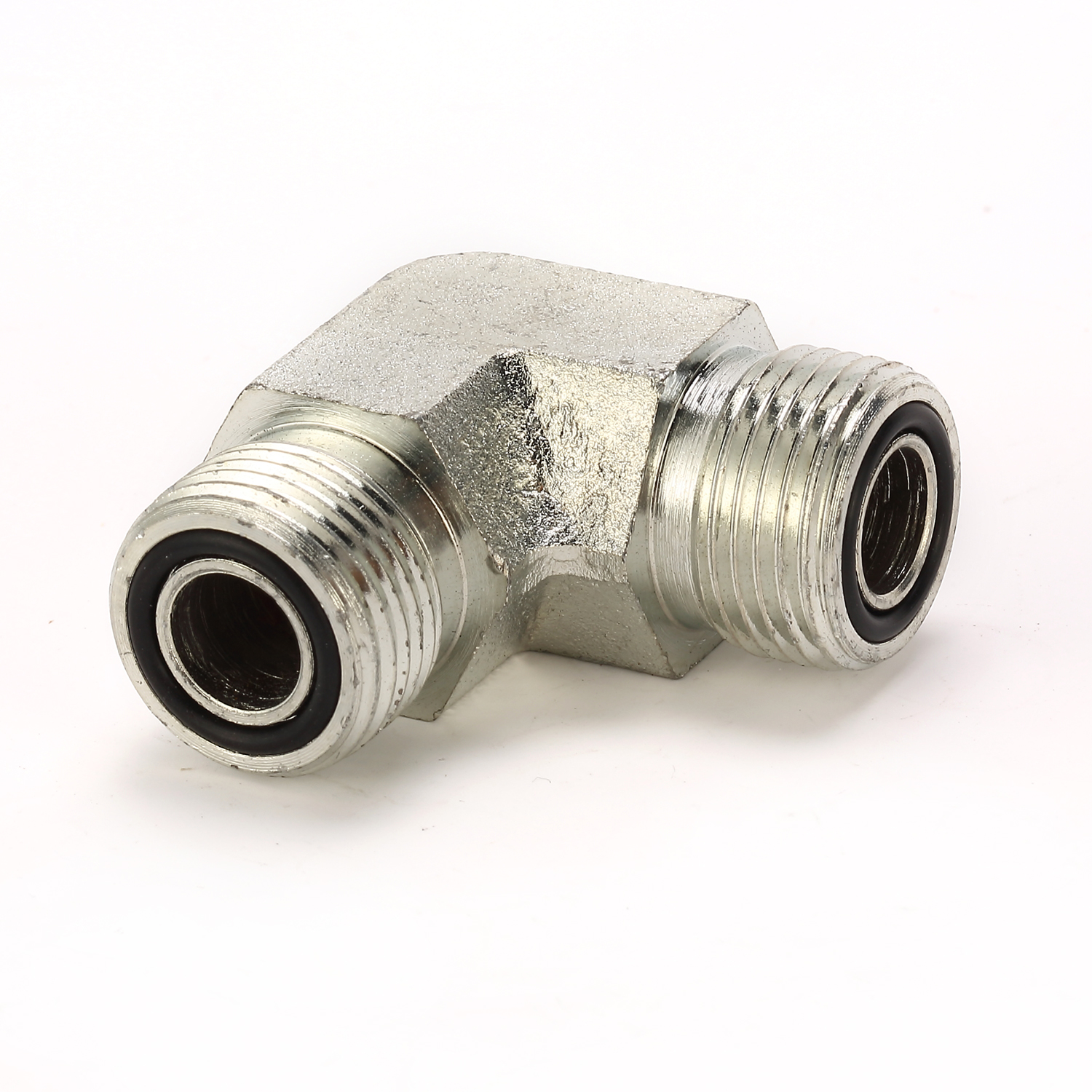

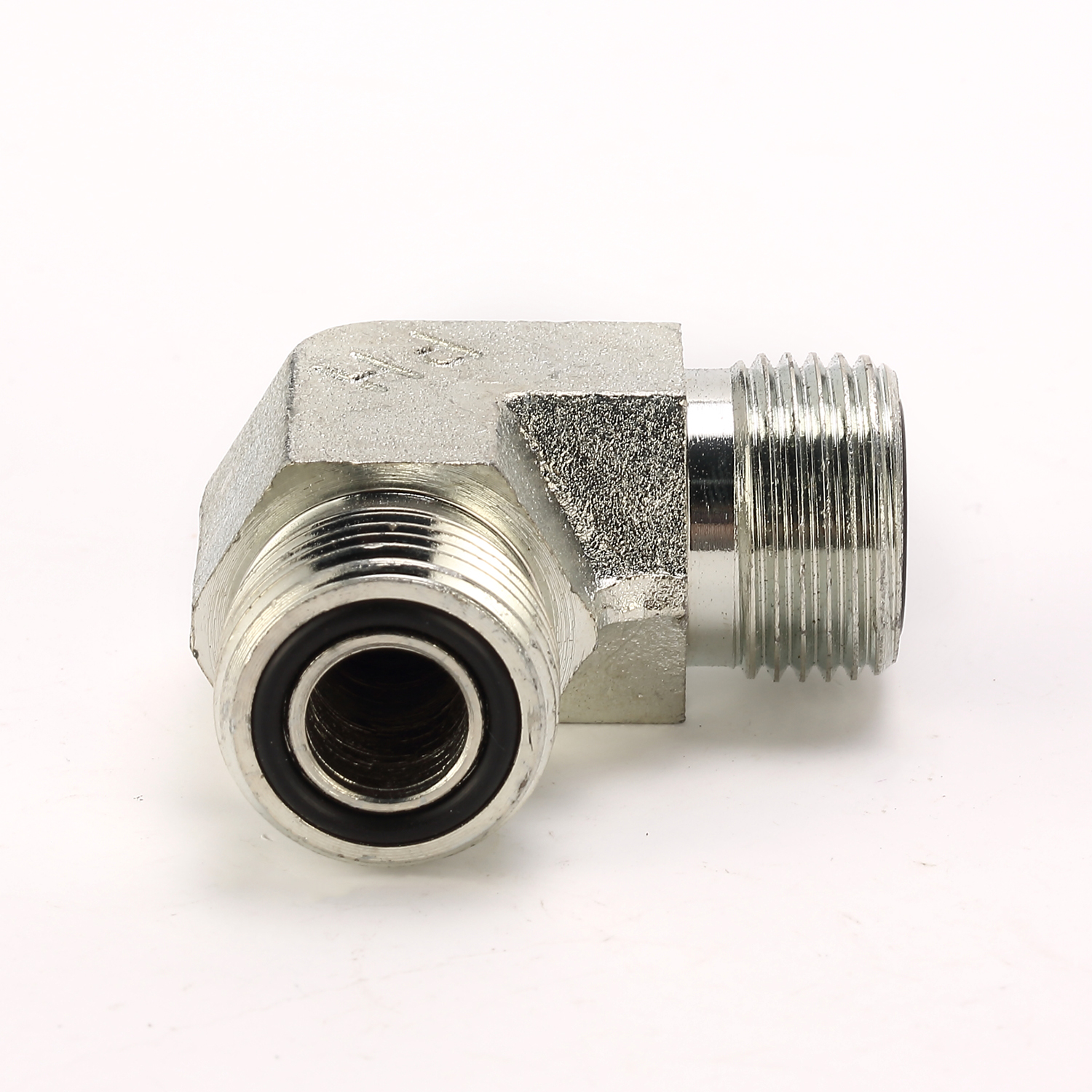

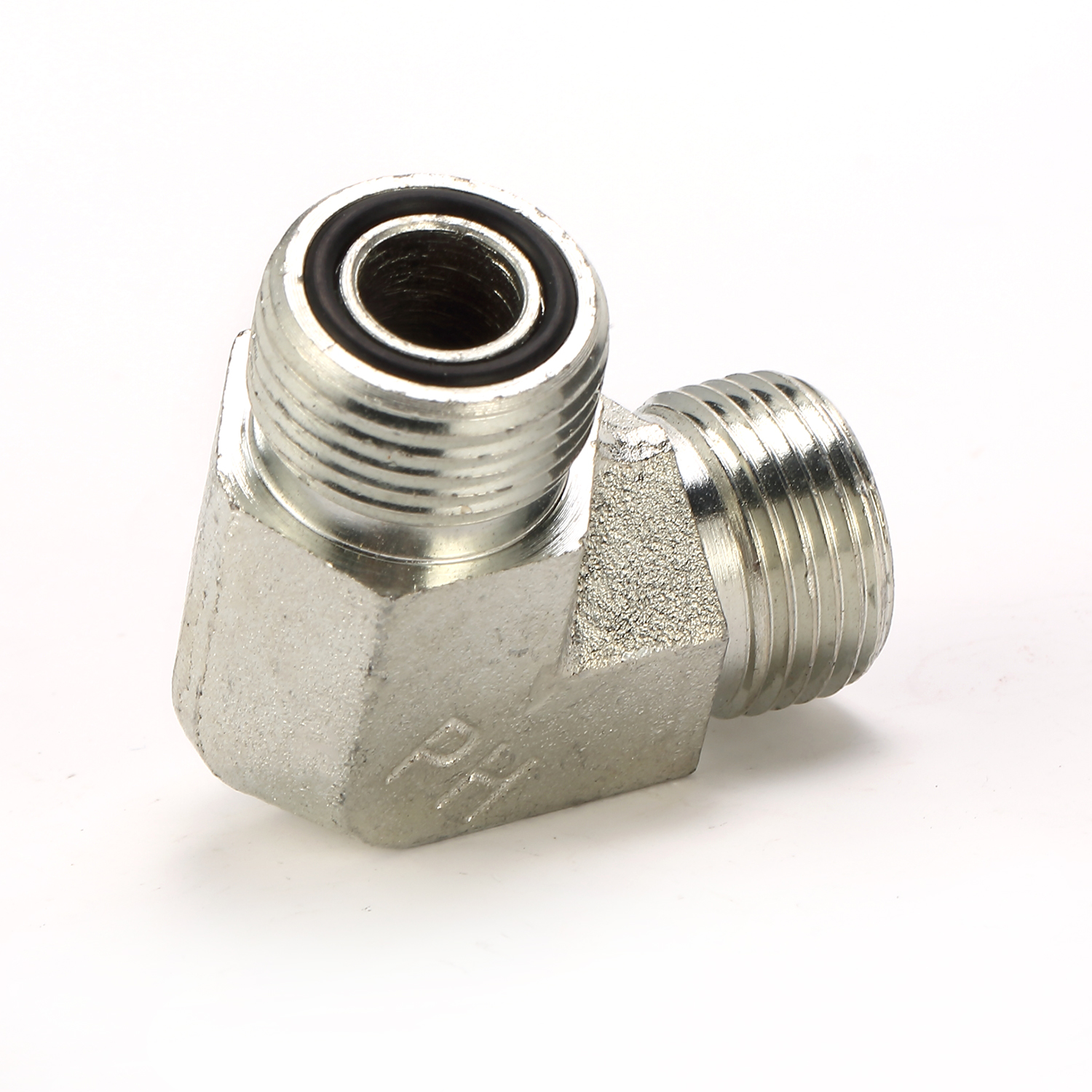

PEHEL Hydraulic Model: P1F9
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type: 90° elbow adapter
Thread Type: ORFS Male with O‑Ring
About the item:
- 1.This 90° elbow ORFS male O‑ring adapter provides 90‑degree turn for hydraulic pipeline routing.
- Carbon steel and stainless steel are available for this ORFS male o‑ring elbow fitting.
- Built‑in O‑ring design delivers excellent leak‑proof performance for the ORFS 90 degree hydraulic fitting.
- Silver zinc‑plated surface enhances corrosion resistance of the 90° ORFS male elbow adapter.
- Precisely machined ORFS male thread ensures perfect mating with matching hydraulic components.
