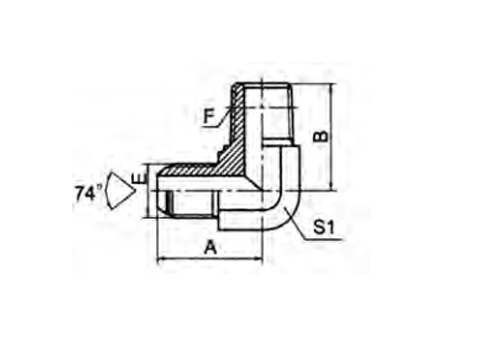

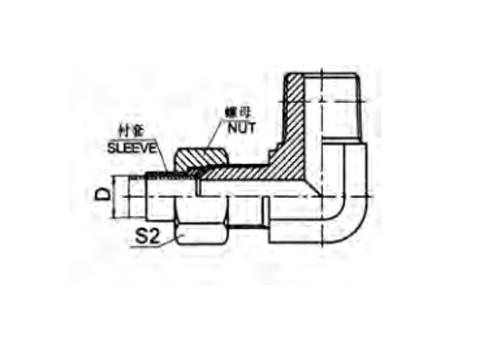

THREAD TUBE O.D. DIMENSIONS PART NO. E F D A B S1 S2 1QT9-14-04SP M14X1.5 R1/4"X19 8 30.2 25.5 14 17 1QT9-16-04SP M16X1.5 R1/4"X19 10 32 26.5 16 22 1QT9-18-06SP M18X1.5 R3/8"X19 12 34 29 19 24 1QT9-18-08SP M18X1.5 R1/2"X14 12 36 36 22 24 1QT9-22-08SP M22X1.5 R1/2"X14 14 37.5 36 22 27 1QT9-27-08SP M27X1.5 R1/2"X14 18 41.5 39.5 27 32 1QT9-27-12SP M27X1.5 R3/4"X14 18 41.5 44 27 32 1QT9-30-12SP M30X1.5 R3/4"X14 20 45.8 45.5 30 36 1QT9-33-12SP M33X2 R3/4"X14 22 49.5 47.5 33 38 1QT9-36-16SP M36X2 R1"X11 25 51.5 52 36 41 1QT9-39-16SP M39X2 R1"X11 28 55.5 55.2 41 46 1QT9-45-20SP M45X2 R1.1/4"X11 34 62.5 61 48 55
PEHEL | 90° Metric Male 74° Cone to BSPT Male Adapter, Hydraulic Elbow with Male Metric Cone and BSPT Thread
PEHEL Hydraulic Model: P1QT9-SP/P1QT9-SP/RN
QTY:
Type: 90° Elbow Adapter
End 1: Metric Male 74° Cone
End 2: BSPT Male (tapered thread)
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc‑plated
About the item:
1.90° elbow adapter featuring a metric male 74° cone on one end and a male BSPT (tapered) thread on the other, designed for hydraulic systems requiring directional change and thread standard conversion.
2.The metric male 74° cone end provides a reliable metal‑to‑metal seal against corresponding female cones, ensuring leak‑free performance under high pressure.
3.The male BSPT end features tapered threads conforming to British Standard Pipe Taper, providing a tight seal when connected to BSPT female ports.
4.90° elbow configuration allows efficient fluid redirection in tight spaces, simplifying hydraulic circuit layout.
5.Manufactured from high‑strength carbon steel with anti‑rust surface treatment for long service life in demanding industrial environments.
