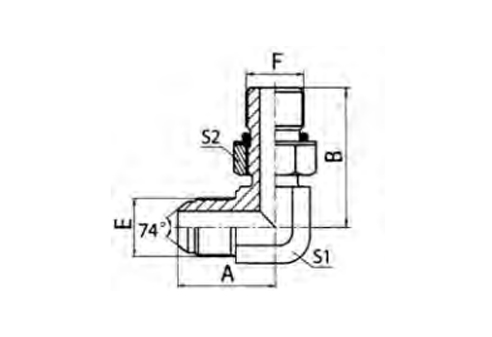

THREAD D O-RING DIMENSIONS PARTNO. E F TUBE O.D. F A B S1 S2 S3 1QO9-16-06 M16X1.5 9/16"X18 10 O906 32 31.8 16 19 22 1QO9-18-08 M18X1.5 3/4"X16 12 O908 34 36.8 19 24 24 1QO9-22-10 M22X1.5 7/8"X14 14 O910 37.5 44 22 27 27 1QO9-27-12 M27X1.5 1.1/16"X12 18 O912 41.5 51 27 32 32 1QO9-30-12 M30X1.5 1.1/16"X12 20 O912 45.8 53 30 32 36 1QO9-33-16 M33X2 1.5/16"X12 22 O916 51 54.5 33 41 38 1QO9-39-16 M39X2 1.5/16"X12 28 O916 55.5 59.5 41 41 46 1QO9-42-20 M42X2 1.5/8"X12 32 O920 58.5 59 41 50 50
PEHEL/90° ELBOW METRIC MALE 74° CONEDAPTER
PEHEL Hydraulic Model: P1QO9-OG/P1QO9-OG/RN
QTY:
90° ELBOW METRIC MALE 74° CONEDAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type 1：METRIC MALE 74° CONE
Thread Type 2：SAE MALE O-RING BOSS
About the item:
1. Official model series P1QO9-OG/RN, a 90-degree elbow hydraulic fitting with metric male thread and standard 74° JIC cone flare structure.
2. Dual thread design: metric male thread (M16×1.5 to M42×2) matched with inch JIC flare thread for cross-standard connection.
3. Covers tube outer diameter sizes from 10mm to 32mm, complete size specifications for diverse hydraulic pipeline layouts.

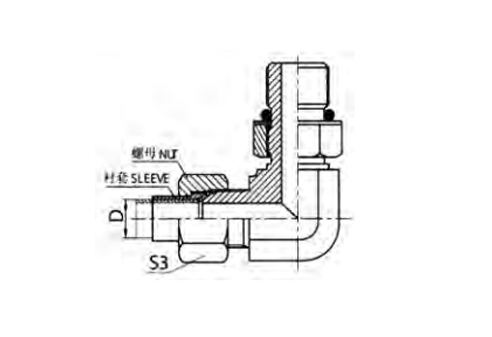

4. Equipped with dedicated O-ring seals and precision sleeve & nut assembly, delivering reliable leak-proof performance under hydraulic pressure.
5. Standardized dimensional parameters (A/B/S1/S2/S3) for easy installation, compatible with general industrial hydraulic tubing systems.
