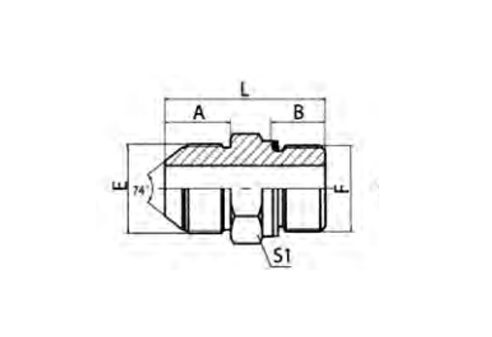

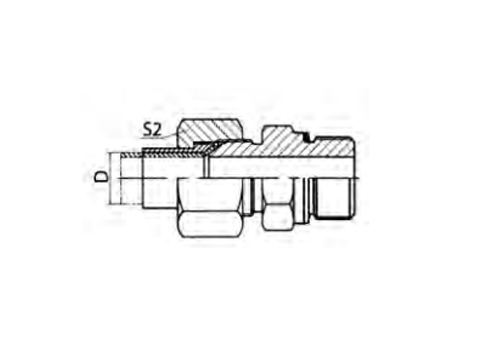

THREAD D O-RING DIMENSIONS PART NO. E F TUBE O.D. F A B L S1 S2 1QG-14-04 M14X1.5 G1/4"X19 8 O111 17 11 36 19 17 1QG-16-06 M16X1.5 G3/8"X19 10 O113 18 11.5 40 22 22 1QG-18-06 M18X1.5 G3/8"X19 12 O113 18 11.5 40 22 24 1QG-18-08 M18X1.5 G1/2"X14 12 O115 18 14 43 27 24 1QG-22-08 M22X1.5 G1/2"X14 14 O115 19.5 14 44.5 27 27 1QG-27-12 M27X1.5 G3/4"X14 18 O119 20 15.5 49.5 32 32 1QG-30-12 M30X1.5 G3/4"X14 20 O119 23 15.5 52.5 32 36 1QG-39-16 M39X2 G1"X11 28 O217 26 18 60 41 46 1QG-45-20 M45X2 G1.1/4"X11 34 O222 28.5 20 66.5 50 55
METRIC MALE 74° CONE
PEHEL Hydraulic Model: P1QG/P1QG-RN
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Thread: Metric/BSP
About the item:
1. Dual-thread compatibility – connects Metric and BSP systems seamlessly.
2. Precision Metric adapter – meets DIN/ISO standards for exact thread fit.
3. Reliable BSP adapter – parallel (BSPP) or tapered (BSPT) options for leak-proof sealing.
4. Durable steel body – corrosion-resistant for high-pressure durability.
5. Versatile application – ideal for cross-system hydraulic connections.
