THREAD DIMENSIONS PART NO. E F A B S1 1JN9-04-02LL 7/16"X20 Z1/8"X27 24.5 39.6 11 1JN9-04LL 7/16"X20 Z1/4"X18 26.6 52.6 14 1JN9-05-04LL 1/2"X20 Z1/4"X18 26.6 52.6 14 1JN9-06-04LL 9/16"X18 Z1/4"X18 26.9 52.6 14 1JN9-06LL 9/16"X18 Z3/8"X18 30 61.5 19 1JN9-08-06LL 3/4"X16 Z3/8"X18 32 61.5 19 1JN9-10-08LL 7/8"X14 Z1/2"X14 37.8 72.9 22 1JN9-12LL 1.1/16"X12 Z3/4"X14 44.2 83.3 27 1JN9-16LL 1.5/16"X12 Z1"X11.5 49 102.9 33 1JN9-20LL 1.5/8"X12 Z1.1/4"X11.5 55.5 127 41 1JN9-24LL 1.7/8"X12 Z1.1/2"X11.5 62.5 141 48 1JN9-32LL 2.1/2"X12 Z2"X11.5 78 168.4 63

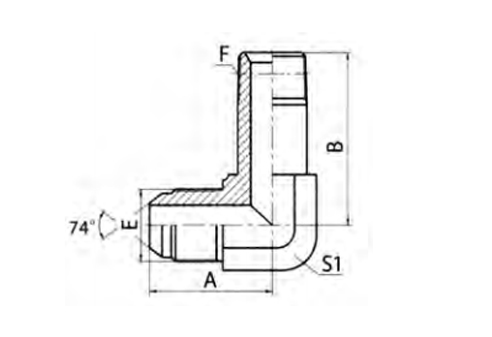

90° ELBOW JIC MALE 74° CONE/ LONGER NPT MALE
PEHEL Hydraulic Model: P1JN9-LL
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
- About the item:
- 1.This 90° Elbow connects JIC Male 74° Cone to Longer NPT Male for seamless hydraulic pipeline conversion.
- 2.Standard JIC 74° cone sealing plus longer NPT male thread of this elbow fitting ensures stable high-pressure connection.
- 3.90 degree bent design of JIC to NPT hydraulic elbow effectively changes pipe direction in limited installation space.
- 4.Silver zinc plating surface resists rust, prolonging service life of Pehel JIC NPT male elbow adapter.
- 5.Carbon steel & stainless steel material options accept OEM custom sizes for JIC-NPT hydraulic transition fittings.javascript:;about:blank#blocked保存
