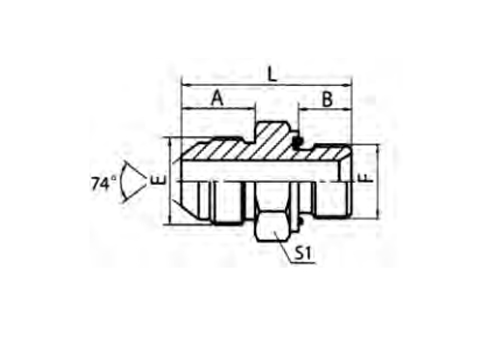

PART NO. THREAD CAPTIVE DIMENSIONS E F F A B L S1 1JM-04-10WD 7/16"X20 M10X1 WD-B02 14 8 29.5 14 1JM-04-12WD 7/16"X20 M12X1.5 WD-M12 14 12 34 17 1JM-05-14WD 1/2"X20 M14X1.5 WD-B04 14 12 34 19 1JM-06-14WD 9/16"X18 M14X1.5 WD-B04 14.1 12 34 19 1JM-06-18WD 9/16"X18 M18X1.5 WD-M18 14.1 12 36.5 24 1JM-06-20WD 9/16"X18 M20X1.5 WD-M20 14.1 14 40.5 27 1JM-08-18WD 3/4"X16 M18X1.5 WD-M18 16.7 12 39 24 1JM-08-20WD 3/4"X16 M20X1.5 WD-M20 16.7 14 43 27 1JM-08-22WD 3/4"X16 M22X1.5 WD-M22 16.7 14 43.5 27 1JM-10-18WD 7/8"X14 M18X1.5 WD-M18 19.3 12 41.5 24 1JM-10-20WD 7/8"X14 M20X1.5 WD-M20 19.3 14 45.5 27 1JM-10-22WD 7/8"X14 M22X1.5 WD-M22 19.3 14 46 27 1JM-12-20WD 1.1/16"X12 M20X1.5 WD-M20 21.9 14 48.5 30 1JM-12-22WD 1.1/16"X12 M22X1.5 WD-M22 21.9 14 49 30 1JM-12-26WD 1.1/16"X12 M26X1.5 WD-B12 21.9 16 52 32 1JM-12-27WD 1.1/16"X12 M27X2 WD-B12 21.9 16 52 32 1JM-16-26WD 1.5/16"X12 M26X1.5 WD-B12 23.1 16 53 36 1JM-16-33WD 1.5/16"X12 M33X2 WD-B16 23.1 18 57 41 1JM-20-42WD 1.5/8"X12 M42X2 WD-B20 24.3 20 62 50 1JM-20-48WD 1.5/8"X12 M48X2 WD-B24 24.3 22 64 55 1JM-24-48WD 1.7/8"X12 M48X2 WD-B24 27.5 22 67.5 55
Pehel/1JM-WD/Male JIC 74deg Cone-Male Metric 60deg Cone With Captive Seal Straight Adapter
PEHEL Hydraulic Model: P1JM-WD
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Straight
Thread Type: JIC/Metric 60deg cone
About the item:
1.High Pressure Tolerance: Withstands up to 31.5MPa, suitable for heavy-load hydraulic systems.
2.Zinc-plated carbon steel body with salt spray resistance up to 240 hours, effectively preventing corrosion in outdoor and humid working environments.
3.Full through-bore design maintains consistent internal flow diameter, avoiding flow restriction that causes system heat rise and efficiency loss.
