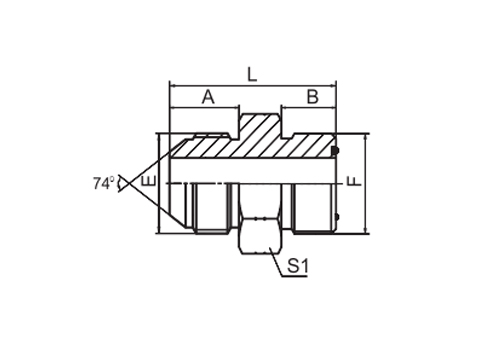

PART NO. THREAD O-RING DIMENSIONS E F F A B L S1 1JF-04 7/16"X20 9/16"X18 7.65X1.78 14 10 29.5 17 1JF-05-06 1/2"X20 11/16"X16 9.25X1.78 14 11.2 31.5 19 1JF-06 9/16"X18 11/16"X16 9.25X1.78 14.1 11.2 31 19 1JF-08 3/4"X16 13/16"X16 12.42X1.78 16.7 13 37.5 22 1JF-10 7/8"X14 1"X14 15.6X1.78 19.3 15.5 44.5 27 1JF-12 1.1/16"X12 1.3/16"X12 18.77X1.78 21.9 17 50 32 1JF-16 1.5/16"X12 1.7/16"X12 23.52X1.78 23.1 17.5 51.5 38 1JF-20 1.5/8"X12 1.11/16"X12 29.87X1.78 24.3 17.5 54.5 46 1JF-24 1.7/8"X12 2"X12 37.82X1.78 27.5 17.5 60 55
PEHEL/JIC MALE 74° CONE / ORFS MALE ADAPTER
PEHEL Hydraulic Model: P1JF
QTY:

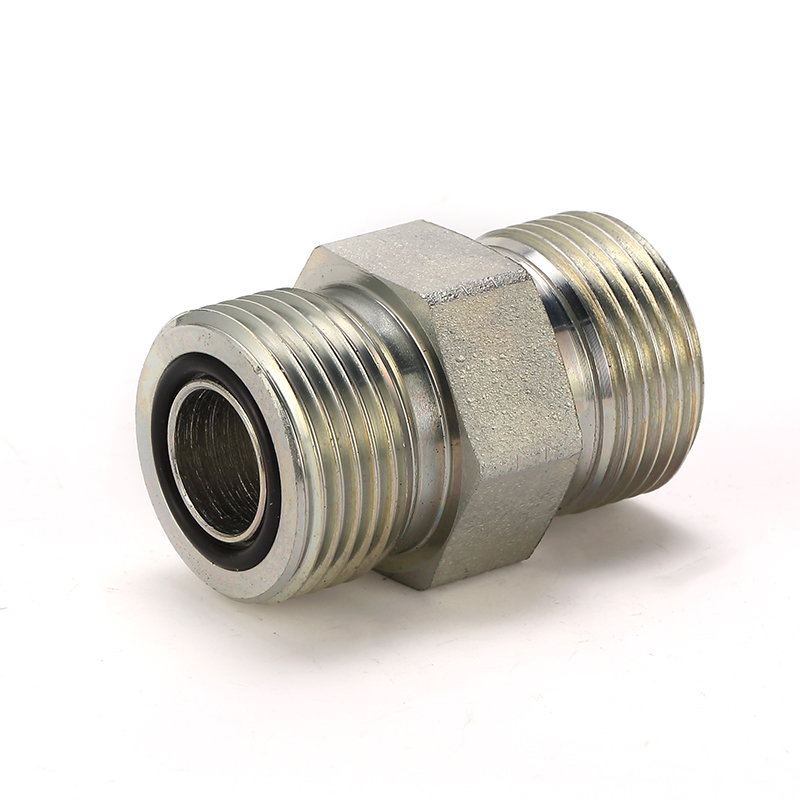

JIC MALE 74° CONE / ORFS MALE ADAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: ADAPTER
Thread Type 1: JIC MALE 74° CONE
Thread Type 2: ORFS MALE
About the item:
1. Straight adapter connecting JIC 74° cone systems to ORFS flat-face ports.
2. 74° cone seat ensures a reliable, leak-tight flare-type seal on the JIC end.
3. ORFS male end with O-ring provides a leak-tight flat-face seal without over-torquing.
4. Available from 7/16"-20 to 1-7/8"-12, with ORFS ends from 9/16"-18 to 2"-12.
5. Ideal for hydraulic, pneumatic, oil and gas systems needing JIC-to-ORFS conversion.
