THREAD DIMENSIONS PART NO. E F G A B C S1 S2 BS-04 G1/4"X19 G1/4"X19 G1/4"X19 28 9 28 14 19 BS-06 G3/8"X19 G3/8"X19 G3/8"X19 29 9.5 29 16 22 BS-08 G1/2"X14 G1/2"X14 G1/2"X14 38 11.3 38 22 27 BS-12 G3/4"X14 G3/4"X14 G3/4"X14 43 13 43 27 32 BS-16 G1"X11 G1"X11 G1"X11 48.5 15 48.5 33 41
JIS Gas Male 60° Cone
PEHEL Hydraulic Model: PBS
QTY:

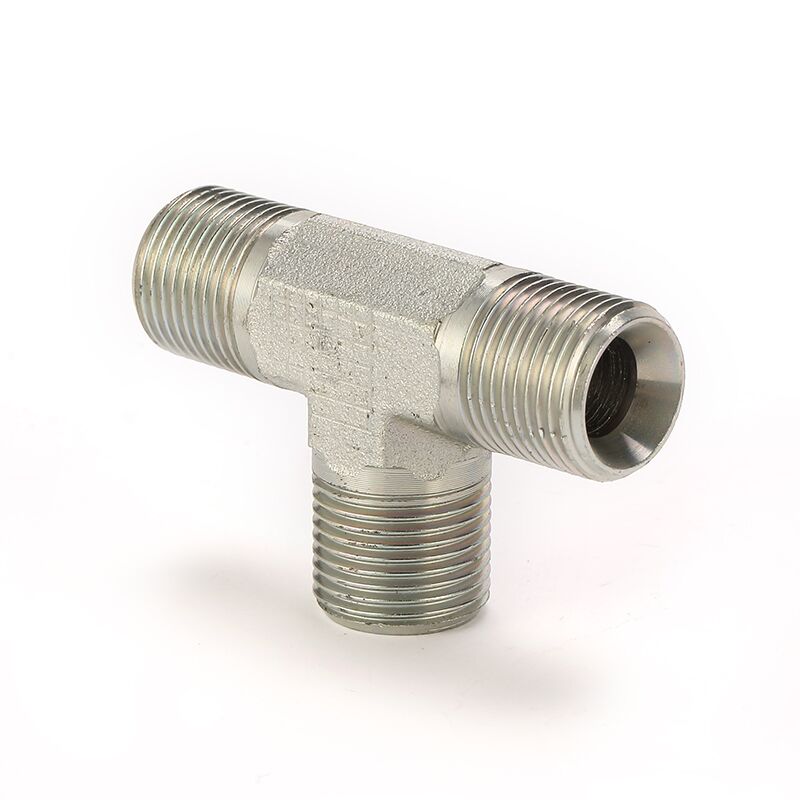

JIS Gas Male 60° Cone Equal Tee Fitting
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: JIS FEMAL MALE THREAD
Thread Type 1: JIS MALE 60 CONE
Thread Type 2: JIS FEMALE 60 CONE
Thread Type 3: JIS MALE 60 CONE
About the item:
1.Model PBS is an equal three-way hydraulic tee with triple JIS BSP male 60° cone sealing ports.2.Complies with JIS B8363 standard, adopting 60° metal-to-metal cone seal for leak-free high-pressure connection.
3.Complete size lineup covers G1/4", G3/8", G1/2", G3/4" and G1" BSP parallel gas threads.
4.Standardized A/B/C/S1/S2 dimensional data with double hexagon flats for easy wrench assembly.
5.Carbon steel forged body with anti-corrosion plating, widely matched for Japanese hydraulic machinery systems.
