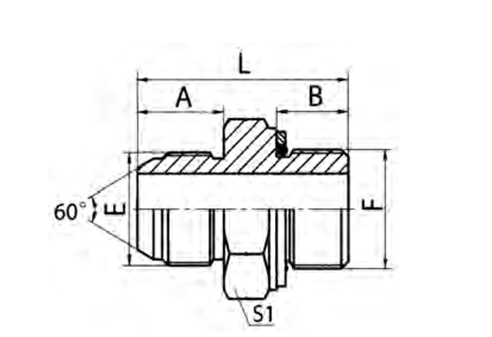

THREAD OO-RING DIMENSIONS PART NO. E F F A B L S1 1SG-02 G1/8"X28 G1/8"X28 O011 12 9.5 29 14 1SG-04 G1/4"X19 G1/4"X19 O111 16 11 34.5 19 1SG-06 G3/8"X19 G3/8"X19 O113 18 11.5 37.5 22 1SG-08 G1/2"X14 G1/2"X14 O115 20 14 44 27 1SG-12 G3/4"X14 G3/4"X14 O119 22 15.5 48.5 32 1SG-16 G1"X11 G1"X11 O217 24 18 55 41 1SG-20 G1.1/4"X11 G1.1/4"X11 O222 27 20 59 50 1SG-24 G1.1/2"X11 G1.1/2"X11 O224 27 21.5 62.5 55
PEHEL | JIS Gas Male 60° Cone Adapter, BSPP Male Thread with 60° Cone Seal
PEHEL Hydraulic Model: 1SG
QTY:
Thread Type: BSPP Male (Gas Thread)
Sealing: 60° Cone Seat
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc-plated
About the item:
1.JIS gas male 60° cone adapter manufactured in accordance with JIS B8363 standard, designed for hydraulic fluid power connections with 60° cone metal-to-metal sealing.
2.Features BSPP (British Standard Pipe Parallel) male thread with 60° cone seat, providing reliable leak-proof sealing through line contact between the cone surface and the mating component.
3.The 60° cone design ensures consistent sealing performance under high-pressure hydraulic conditions without the need for additional seals or O-rings.
4.Manufactured from high-strength carbon steel with anti-rust surface treatment for excellent durability and corrosion resistance in demanding industrial environments.
5.Widely used in hydraulic systems, industrial machinery, and equipment designed to Japanese Industrial Standards, commonly serving as hose adapters.
