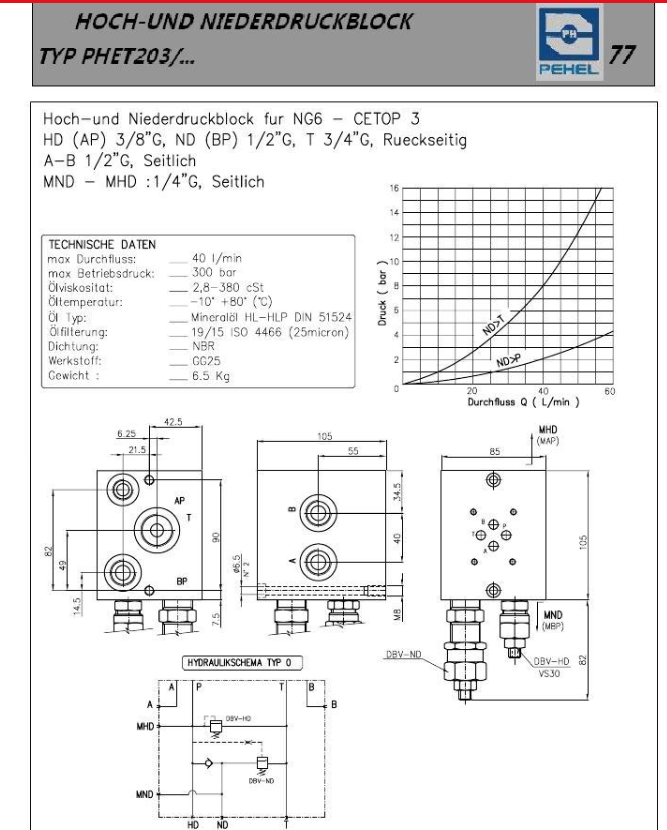

Parameter Value Max. flow rate 40 L/min Max. operating pressure 300 bar Oil viscosity 2.8 – 380 cSt Oil temperature –10 to +80 °C Oil type Mineral oil HL‑HLP per DIN 51524 Oil filtration 19/15 ISO 4466 (25 micron) Seal material NBR Material GG25 Weight 6.5 kg
PEHEL / PHET203 / High-Low Pressure Manifold NG6 CETOP3 G3/8-G1/2 40L/min 300bar
PEHEL Hydraulic Model: PHET203
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Type: High and low pressure manifold
About the item:
1. PEHEL PHET203 manifold handles 300 bar pressure and 40 L/min flow for reliable high‑power hydraulic control.
2. NG6 – CETOP 3 mounting standard ensures seamless valve compatibility and quick system integration.
3. Multiple BSPP G‑thread ports (rear: 3/8", 1/2", 3/4"; side: 1/2", 1/4") offer flexible connection options.
4. Durable GG25 cast iron body with NBR seals withstands –10 to +80°C and mineral oil (HL‑HLP).
5. Wide viscosity range (2.8–380 cSt) and 25µm filtration reduce maintenance and adapt to diverse oils.
