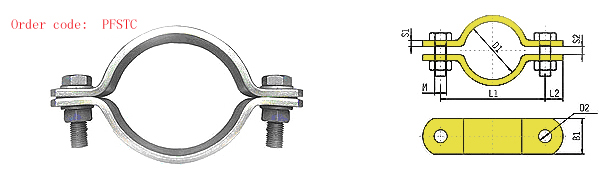

flat steel tube clamp: 4 models for choice
Clamp
D1nominal width
L1 L2 S1 S2 D2 B1 hexagon head nut mm Out inch 20 15
57 15 5 7 12 30 M10×30
M1022 15 59 25 20 62 27 20 3/4 66 30 25 68 34 25 1 72 38 32 76 43 32 11/4 82 45 40 84 49 40 11/2 88 57 50 104 18 6 9 14 40 M12×35
M1261 50 2 108 77 65 21-2 122 89 80 3 136 108 100 172 24 8 11 18 50 M16×45
M16115 100 4 178 133 125 196 140 125 204 159 150 222 169 150 232 194 175 258 216 200 280 220 200 284 267 250 342 30 8 14 23 60 M20×50
M20273 250 348 319 300 392 324 300 398 368 350 444 407 400 498 36 10 18 27 70 M24×60
M24419 400 510 521 500 614 - 这是一个文本段落,你可以使用它来向模板中加入文本内容
Flat Steel Tube Clamp DIN3015
PEHEL Hydraulic Model: PFSTC
QTY:
About the item:
- 1. DIN 3015 Standard CompliancePrecision engineered to meet the rigorous DIN 3015 standard, ensuring universal compatibility and reliable performance in heavy-duty hydraulic and pneumatic systems.
- 2. Heavy-Duty Carbon Steel ConstructionManufactured from high-strength carbon steel, providing superior load-bearing capacity and resistance to mechanical stress in high-pressure industrial environments.
- 3. Superior Vibration DampingDesigned to effectively absorb shock and reduce vibration, preventing pipeline fatigue, minimizing noise, and extending the service life of your piping system.
- 4. Secure & Easy InstallationFeatures a robust stacking design with secure bolt fastening, allowing for quick assembly and easy alignment of single or multiple lines without complex tools.
- 5. Corrosion-Resistant Surface FinishTreated with zinc plating (or galvanization), offering excellent protection against rust and corrosion for long-lasting durability in harsh conditions.
