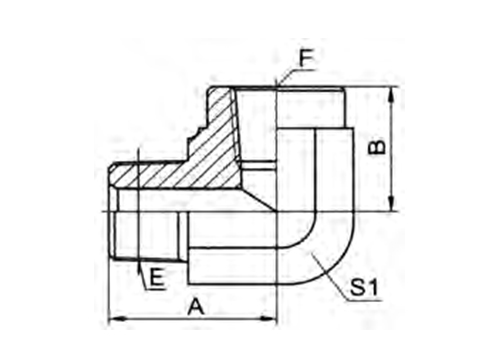

THREAD DIMENSIONS PART NO. E F A B S1 5T9-02SP R1/8"X28 Rc1/8"X28 24.5 23 16 5T9-04SP R1/4"X19 Rc1/4"X19 27 22.4 19 5T9-06SP R3/8"X19 Rc3/8"X19 33.5 25 24 5T9-08SP R1/2"X14 Rc1/2"X14 40.5 31.2 30 5T9-12SP R3/4"X14 Rc3/4"X14 45.2 34.5 33 5T9-16SP R1"X11 Rc1"X11 54.5 41.1 41 5T9-20SP R1.1/4"X11 Rc1.1/4"X11 61 50 48 5T9-24SP R1.1/2"X11 Rc1.1/2"X11 75 55 63
90° ELBOW BSPT MALE / BSPT FEMALE
PEHEL Hydraulic Model: P5T9-SP
QTY:
