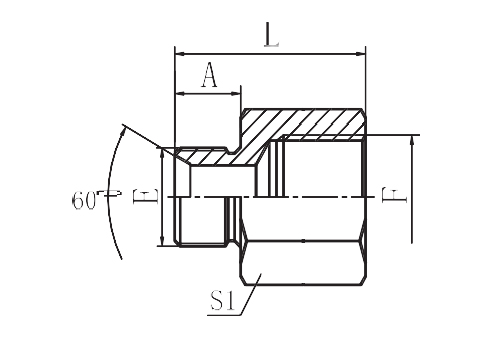

THREAD DIMENSIONS PART NO. E F A L S1 5B-02-04 G1/8"X28 G1/4"X19 10 29 19 5B-04-02 G1/4"X19 G1/8"X28 12 28 19 5B-04 G1/4"X19 G1/4"X19 12 33 19 5B-04-06 G1/4"X19 G3/8"X19 12 36 22 5B-06-04 G3/8"X19 G1/4"X19 13.5 33.5 22 5B-06 G3/8"X19 G3/8"X19 13.5 37.5 22 5B-06-08 G3/8"X19 G1/2"X14 13.5 42.5 27 5B-08-06 G1/2"X14 G3/8"X19 16 38 27 5B-08 G1/2"X14 G1/2"X14 16 45 27 5B-08-10 G1/2"X14 G5/8"X14 16 46 30 5B-08-12 G1/2"X14 G3/4"X14 16 44.5 36 5B-10-08 G5/8"X14 G1/2"X14 17.5 41.5 30 5B-12-08 G3/4"X14 G1/2"X14 18.5 44.5 32 5B-12 G3/4"X14 G3/4"X14 18.5 48 36 5B-12-16 G3/4"X14 G1"X11 18.5 53.5 41 5B-16-12 G1"X11 G3/4"X14 20.5 47.5 41 5B-16 G1"X11 G1"X11 20.5 55.5 41 5B-16-20 G1"X11 G1.1/4"X11 20.5 56.5 50 5B-20-16 G1.1/4"X11 G1"X11 20.5 49 50 5B-20 G1.1/4"X11 G1.1/4"X11 20.5 52.5 50 5B-20-24 G1.1/4"X11 G1.1/2"X11 20.5 57.5 55 5B-24 G1.1/2"X1 G1.1/2"X11 23 58 55 5B-32-24 G2"X11 G1.1/2"X11 25.5 59.5 70 5B-32 G2"X11 G2"X11 25.5 63 70
BSP MALE DOUBLE USE FOR 60°SEAT OR BONDED SEAL / BSP FEMALE
PEHEL Hydraulic Model: P5B
