THREAD DIMENSIONS PART NO. E F A B S1 S2 S3 3B9-02 G1/8"X28 G1/8"X28 5.5 5.5 11 14 14 3B9-04 G1/4"X19 G1/4"X19 5.5 5.5 11 19 19 3B9-06 G3/8"X19 G3/8"X19 6.3 6.3 14 22 22 3B9-08 G1/2"X14 G1/2"X14 7.5 7.5 19 27 27 3B9-10 G5/8"X14 G5/8"X14 9.5 9.5 19 30 30 3B9-12 G3/4"X14 G3/4"X14 10.9 10.9 24 32 32 3B9-16 G1"X11 G1"X11 11.7 11.7 30 41 41 3B9-20 G1.1/4"X11 G1.1/4"X11 11 11 41 50 50 3B9-24 G1.1/2"X11 G1.1/2"X11 13 13 48 55 55 3B9-32 G2"X11 G2"X11 16 16 63 70 70

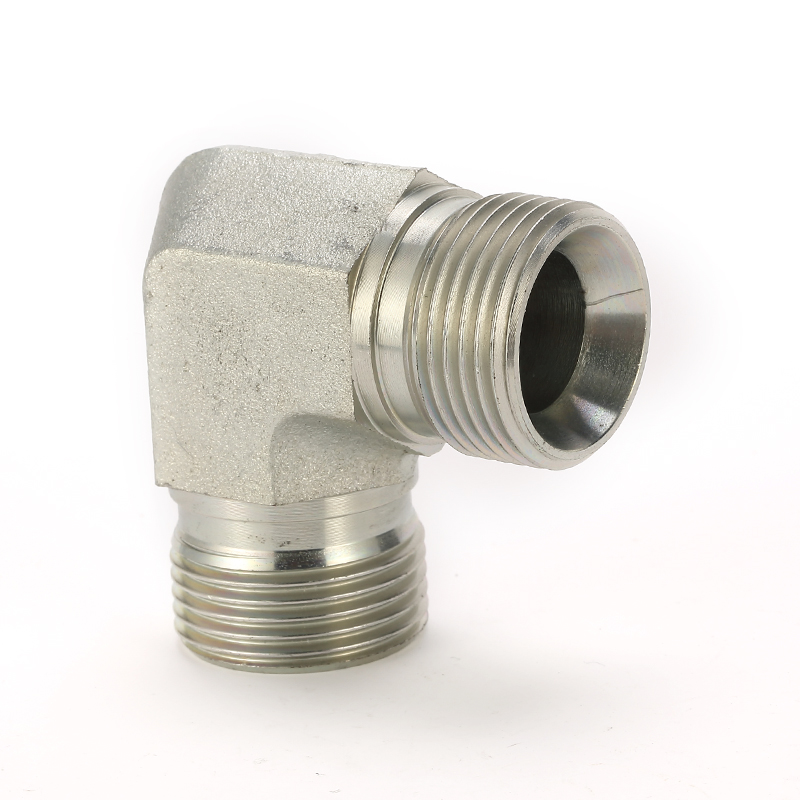

Pehel | 3B9 | 90° BSP FEMALE 60° CONE
PEHEL Hydraulic Model: P3B9
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
Thread: BSP
Connector: female elbow
Size: 1/4"-2"
About the item:
1. Precision adapter – designed for BSP threaded hydraulic connections.
2. BSP thread standard – available in parallel (BSPP) or tapered (BSPT) options.
3. Leak-proof sealing – O-ring or tapered thread ensures zero fluid loss.
4. Durable steel body – corrosion-resistant for long service life.
5. Versatile application – ideal for BSP port systems and equipment.
