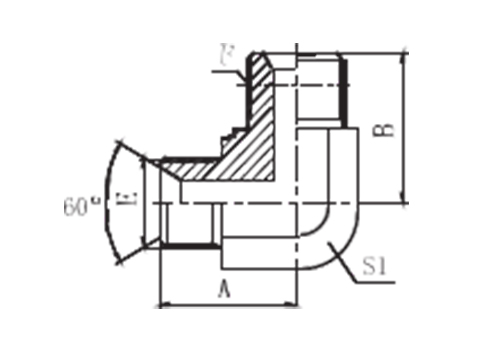

THREAD DIMENSIONS PART NO. E F A B S1 1BN9-04 G1/4"X19 Z1/4"X18 24.5 25.5 14 1BN9-04-02 G1/4"X19 Z1/8"X27 24.5 23.5 14 1BN9-06 G3/8"X19 Z3/8"X18 28.5 31 19 1BN9-06-04 G3/8"X19 Z1/4"X18 27.5 26.5 16 1BN9-06-08 G3/8"X19 Z1/2"X14 31 36.5 22 1BN9-06-12 G3/8"X19 Z3/4"X14 34.5 44 27 1BN9-08 G1/2"X14 Z1/2"X14 34.5 37.5 22 1BN9-08-06 G1/2"X14 Z3/8"X18 34.5 33 22 1BN9-12 G3/4"X14 Z3/4"X14 38 43.5 27 1BN9-12-08 G3/4"X14 Z1/2"X14 39 42 27 1BN9-12-16 G3/4"X14 Z1"X11.5 43 50 33 1BN9-16 G1"X11 Z1"X11.5 46 50 33 1BN9-16-12 G1"X11 Z3/4"X14 46 46.5 33
PEHEL | 90° BSP Male 60° Cone to NPT Male Hydraulic Adapter, Carbon Steel Elbow Fitting
PEHEL Hydraulic Model: P1BN9
QTY:
Type: 90° Elbow Adapter
End 1: BSP Male 60° Cone
End 2: NPT Male
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc‑plated
1.90° elbow adapter featuring a BSP male 60° cone end on one side and an NPT male threaded end on the other, designed for directional changes and thread standard transition in hydraulic systems.
2.The BSP male 60° cone end provides metal‑to‑metal sealing when mated with corresponding female cone ports.
3.The NPT male end features tapered threads for reliable sealing through thread interference.
4.90° angled body allows efficient redirection of fluid flow in confined spaces.
5.Manufactured from high‑strength carbon steel with anti‑rust surface treatment for long service life.
