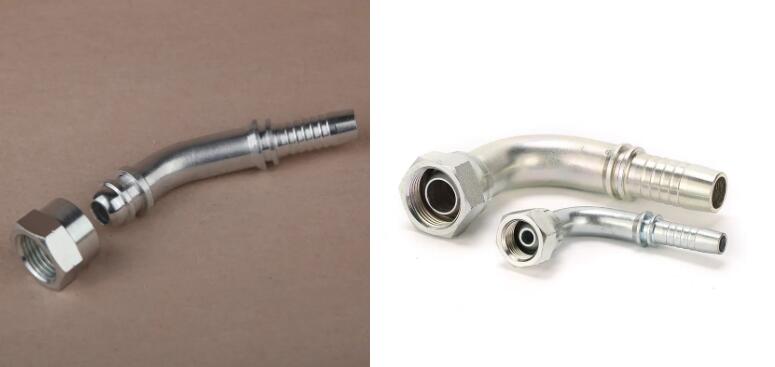

45º BSP Female Multiseal

45º BSP Female Multiseal

PEHEL Hydraulic Model: P22141

QTY:

22141 BSP female multi seal 45 degree elbow bsp pipe fittings galvanized steel hose fittings

  • BSP female multiseal elbow

  • 45º BSP Female Multiseal Specification
  • You May Also Like
  • Hydraulic BSP female flat face 45deg steel hose fittings
    45 Elbow BSP Female Hose FItitng Hydraulic Hose Fitting 22141 Multi Seal Fitting
  • PART NO. THREAD E HOSE BORE DIMENSIONS
    DN DASH A C H S2
    22141-02-04 G1/8"X28 6 04 43.7 5.5 21.6 14
    22141-04-04 G1/4"X19 6 04 40.5 3.5 21.6 19
    22141-06-06 G3/8"X19 10 06 48 5.5 24 22
    22141-08-08 G1/2"X14 12 08 61.5 6.3 27 27
    22141-10-10 G5/8"X14 16 10 70 6 29 30
    22141-12-12 G3/4"X14 20 12 76.5 7 33 32
    22141-16-16 G1"X11 25 16 91.7 7 35 41
    22141-20-20 G1.1/4"X11 32 20 105.5 6.5 41 50
    22141-24-24 G1.2/2"X11 40 24 113 6.5 49 65
    22141-32-32 G2"X11 50 32 149 9 59 70
    NOTE:1.For use with braided hoses.                   2.If use with spiral hoses,hose fitting series number is 22142-XX-XX。
  • Our advantage
    1. High quality.      2. A lot of stock.      3. Prompt delivery.
    4. Factory. Products produced by ourselves.
    Delivery time
    About 1 month if do not have stock.
    Customize service
    We can produce according to your drawings and samples.
    Packing details
    Nylon plastic + corrugated carton + pallet

  • BSP female multi seal 45 degree elbow bsp pipe fittings galvanized steel hose fittings
