PART NO. THREAD O-RING DIMENSIONS E F E F A B L S1 S2 6F-04 9/16"X18 9/16"X18 7.65X1.78 7.65X1.78 9.8 32 48.2 22 22 6F-06 11/16"X16 11/16"X16 9.25X1.78 9.25X1.78 11.2 34 53.2 27 27 6F-08 13/16"X16 13/16"X16 12.42X1.78 12.42X1.78 12.8 36.5 58.3 30 30 6F-10 1"X14 1"X14 15.6X1.78 15.6X1.78 15.5 40.6 66.6 36 36 6F-12 1.3/16"X12 1.3/16"X12 18.77X1.78 18.77X1.78 17 41.7 69.2 38 38 6F-16 1.7/16"X12 1.7/16"X12 23.52X1.78 23.52X1.78 17.5 42.2 70.2 46 46 6F-20 1.11/16"X12 1.11/16"X12 29.87X1.78 29.87X1.78 17.5 42.2 70.2 50 50 6F-24 2"X12 2"X12 37.82X1.78 37.82X1.78 17.5 42.2 70.2 60 60

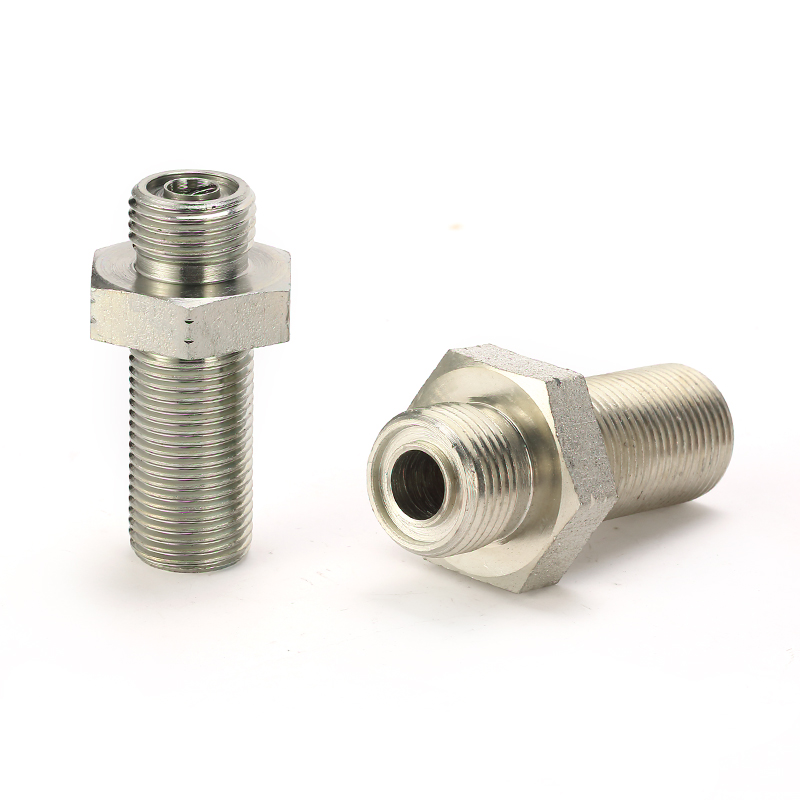

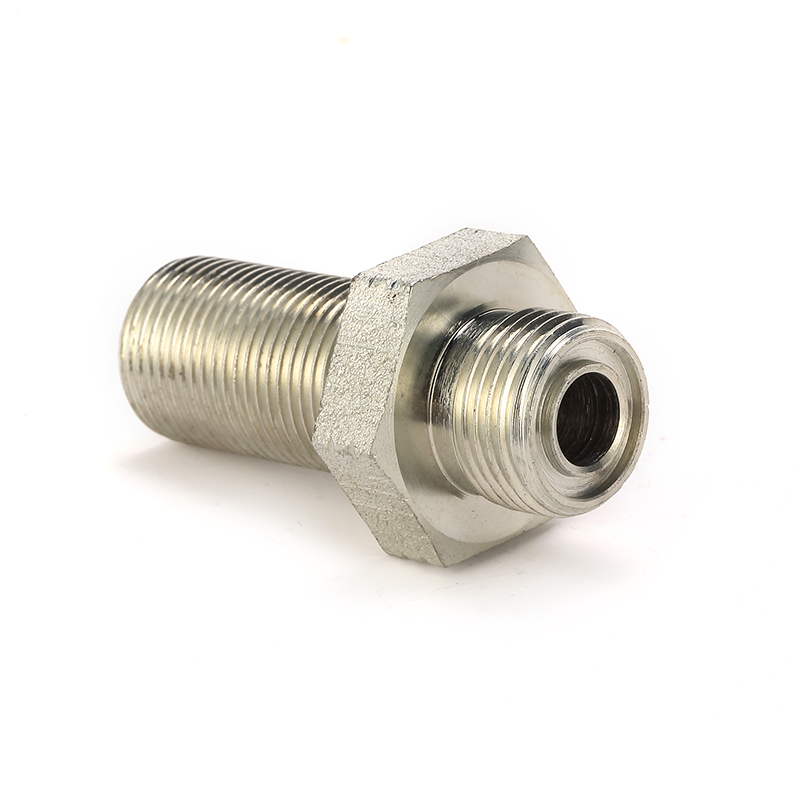

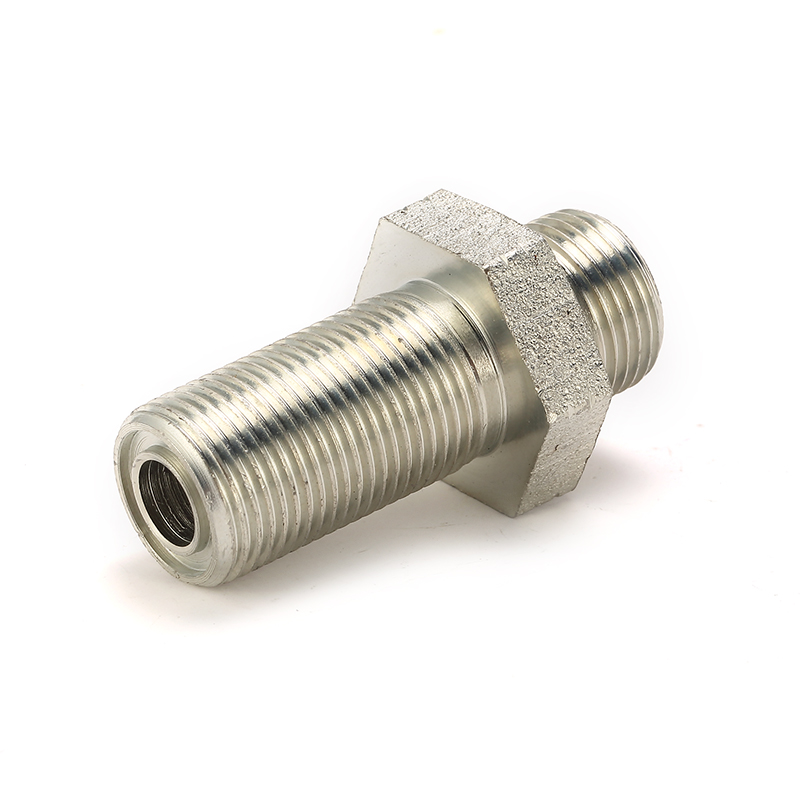

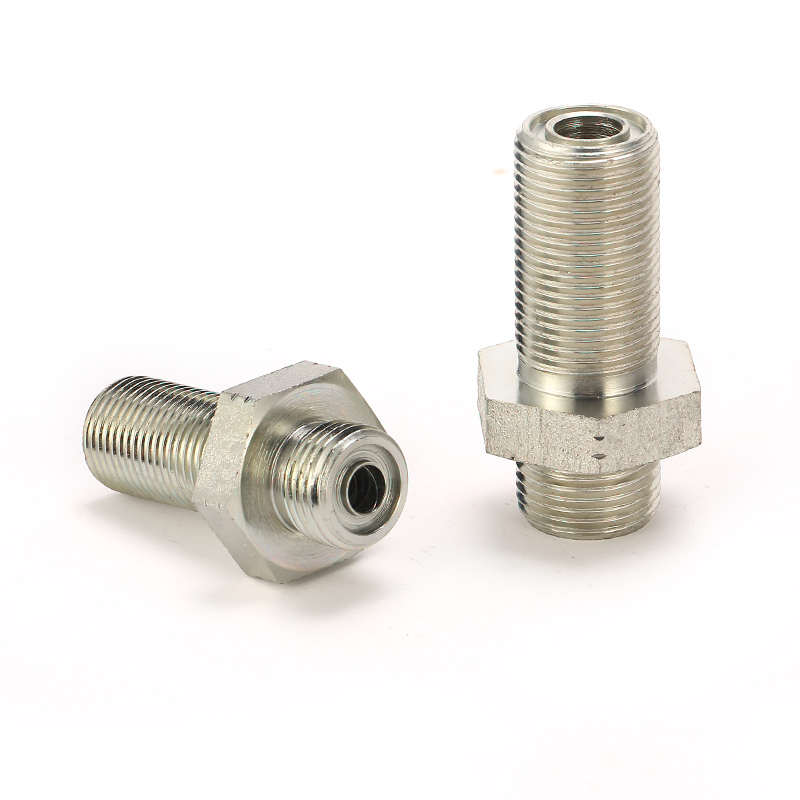

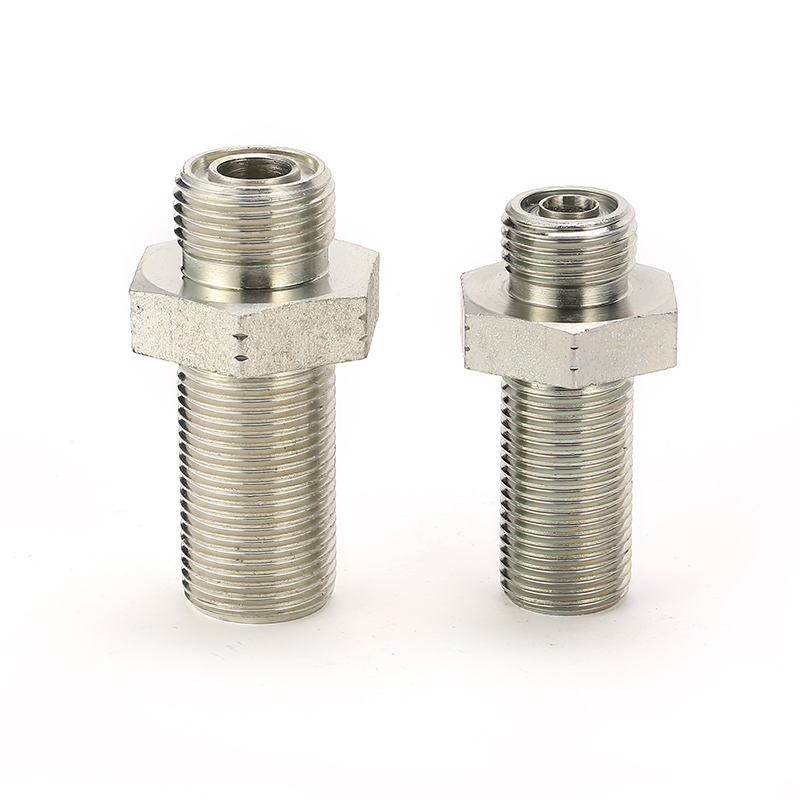

PEHEL | ORFS Male Bulkhead Hydraulic Adapter, O-Ring Face Seal Straight Thread
PEHEL Hydraulic Model: 6F/6F-LN
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: straight
Thread Type: ORFS Male
About the item:
1. ORFS male bulkhead design with O-ring face seal provides leak-free connections on both sides of the panel, ideal for high-vibration hydraulic systems.
2. Precision-machined threads with built-in O-ring groove on the sealing face ensure reliable, zero-leak performance under high-pressure operation.
3. Bulkhead design allows secure panel installation, simplifies pipe routing in confined spaces, and reduces the need for additional connectors.
4. Strict tolerance crimp stem enables stable hose crimping, prevents hose pull-off and oil seepage even under pulse pressure.
5. Made of high-strength carbon steel with anti-rust surface treatment, offers excellent durability and long service life in demanding environments.
