PHC3H3

PEHEL Hydraulic Model: PHC3H3

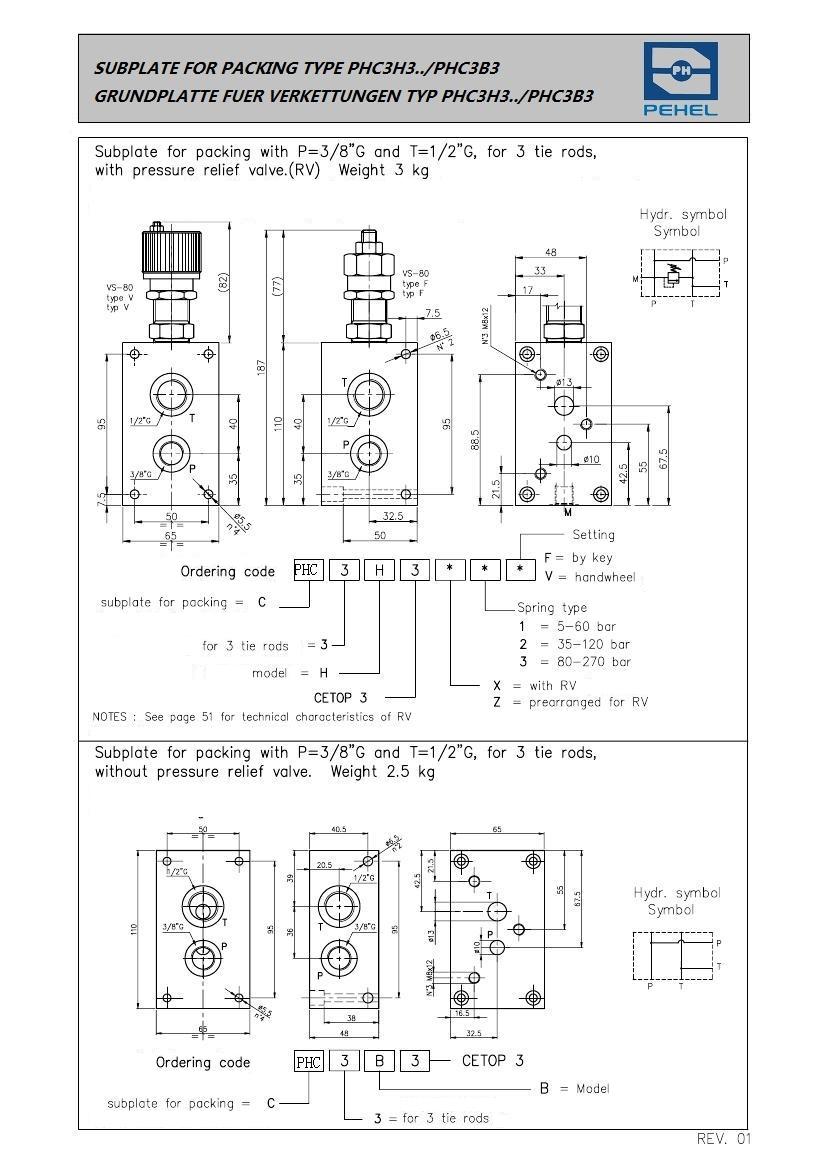

• 1. Subplate for packing with P=3/8”G and T =1/2”G, for 3 tie rods. With pressure relief valve.(RV)
   Weight=3kg
  2. Subplate for packing with P=3/8”G and T =1/2”G, for 3 tie rods. Without pressure relief valve. (RV)
   Weight=2.5kg
  3. High performance and cost effective.
  4. NPT, SAE, PT thread for all parts is available

• About the item:

  1. PHC3H3 — CETOP 3 (NG6) stacking subplate for packing, designed for 3 tie rods.

  2. Ports: P=3/8" G and T=1/2" G, with integrated pressure relief valve (RV) for system protection.

  3. Precision-machined carbon steel construction ensures flatness, rigidity and leak-tight stacking.

  4. NPT, SAE and PT threads available for all ports to suit different systems.

  5. Ideal for building compact hydraulic valve stacks with easy installation and maintenance.
