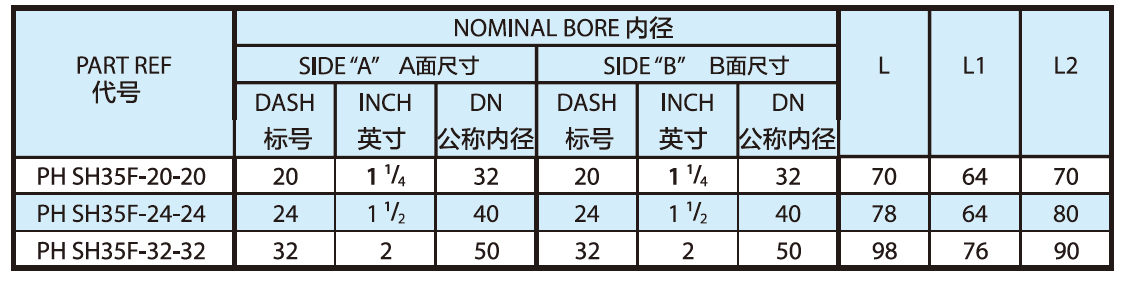

PART REF
代号NOMINAL BORE 内径
L
L1
L2
SIDE "A" A面尺寸
SIDE "B" B面尺寸
DASH
标号INCH
英寸DN
公称内径DASH
标号INCH
英寸DN
公称内径PH SH35F-20-20
20
1 1/4
32
20
1 1/4
32
70
64
70
PH SH35F-24-24
24
1 1/2
40
24
1 1/2
40
78
64
80
PH SH35F-32-32
32
2
50
32
2
50
98
76
90

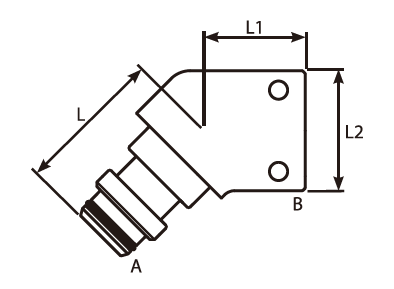

Pehel | 135° Staple Male To Fixed Female Hydraulic Adaptor
PEHEL Hydraulic Model: Series SH35F
QTY:
- Material: Carbon steel, stainless steel
- Brand: Pehel, OEM
- Color: Silver color zinc plating
- Connector Type: 135° Elbow, Staple Male, Fixed Female, Transition Adaptor
- Thread Type: Staple male thread, Fixed female thread (BSPP / metric available)
- Surface Treatment: Trivalent zinc plating, silver finish
- Sealing Type: Staple ferrule seal, female thread seal
- Angle: 135 Degree
- Application: Industrial hydraulics, mobile machinery, hydraulic power units
About the item:
- 1.This 135° hydraulic transition piece converts staple male port to fixed female thread while providing 135‑degree pipeline direction change.
- 2.Carbon steel and stainless steel options make this hose end connector adaptable to varied pressure and corrosive operating environments.
- 3.Silver zinc‑plated surface delivers reliable anti‑corrosion performance, extending service life of this heavy‑duty hose coupling.
- 4.Precision‑machined staple ferrule and fixed female thread ensure leak‑free sealing for this high‑pressure hydraulic union.
- 5.Available as Pehel standard stock or OEM service to satisfy your custom fluid connection component specifications.
