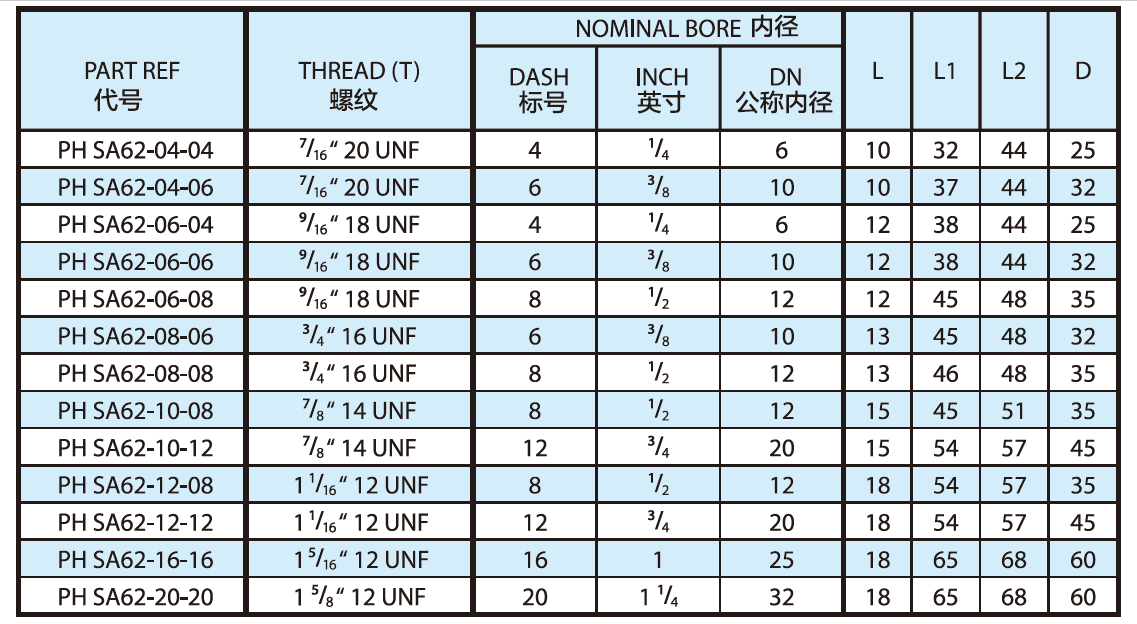

PART REF THREAD(T) DASH INCH DN L L1 L2 D PH SA62-04-04 7/16''20 UNF 4 1/4 6 10 32 44 25 PH SA62-04-06 7/16''20 UNF 6 3/8 10 10 37 44 32 PH SA62-06-06
9/16''18 UNF 6 3/8 10 12 38 44 32 PH SA62-06-08 9/16''18 UNF 8 1/2 12 12 45 48 35 PH SA62-08-08 3/4''16 UNF 8 1/2 12 13 46 48 35 PH SA62-10-08 7/8''14 UNF 8 1/2 12 15 45 51 35 PH SA62-12-12 1.1/16''12 UNF 12 3/4 20 18 54 57 45 PH SA62-16-16 1.5/16''12 UNF 16 1 25 18 65 68 60 PH SA62-20-20 1.5/8''12 UNF 20 1.1/4 32 18 65 68 60

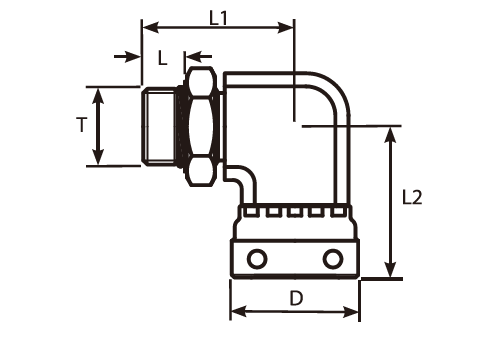

Pehel/SA62/90deg Elbow UNF Male O-Ring-Swivel Female Staple Adaptor
PEHEL Hydraulic Model: Series SA62
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Elbow
Thread Type: UNF/Staple
About the item:
1.Leak-Proof O-Ring Seal – Precision-engineered O-ring on the UNF male thread ensures reliable, high-pressure sealing to minimize fluid loss and system failure.
2.Durable Corrosion-Resistant Finish – Manufactured from high-strength carbon steel with surface treatment (e.g., zinc-plated or trivalent chrome), offering long service life even in harsh environments.
3.Space-Saving 90° Design – Ideal for tight hydraulic installations where straight connectors cannot fit, enabling flexible hose routing in confined areas.
