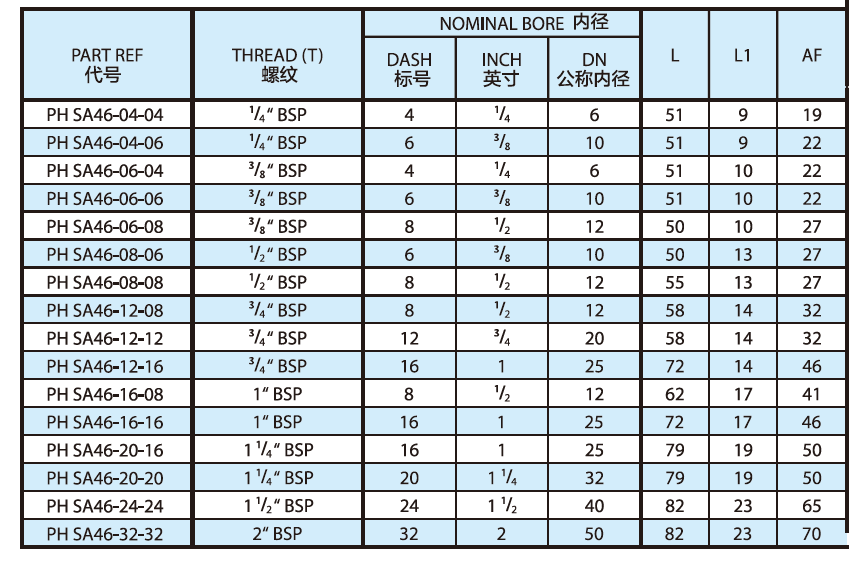

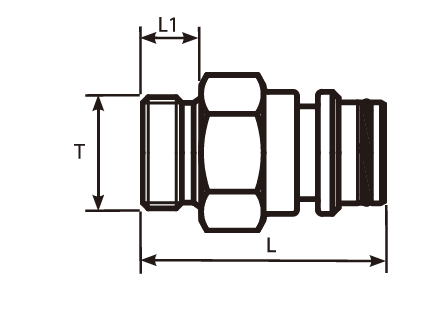

Part THREAD DASH INCH DN L L1 AF PH SA46-04-04 1/4 BSP 4 1/4 6 51 9 19 PH SA46-04-06 1/4 BSP 6 3/8 10 51 9 22 PH SA46-06-04 3/8 BSP 4 1/4 6 51 10 22 PH SA46-06-06 3/8 BSP 6 3/8 10 51 10 22 PH SA46-06-08 3/8 BSP 8 1/2 12 50 10 27 PH SA46-08-06 1/2 BSP 6 3/8 10 50 13 27 PH SA46-08-08 1/2 BSP 8 1/2 12 55 13 27 PH SA46-12-08 3/4 BSP 8 1/2 12 58 14 32 PH SA46-12-12 3/4 BSP 12 3/4 20 58 14 32
Pehel | SA46 | Hydraulic BSP Male Flat Face - Staple Male Adaptor
PEHEL Hydraulic Model: Series SA46
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Type: Staplelok
About the item:
1. Extreme durability – forged steel body withstands heavy shocks and vibrations.
2. Corrosion-resistant – special coating protects against water, dust, and chemicals.
3. Leak-proof sealing – precision threads ensure zero fluid loss in high-pressure mining systems.
4. Flame-resistant option – available with fire-resistant materials for underground safety.
5. Quick installation – thread-on or flange designs reduce downtime in the field.
