THREAD DIMENSIONS PART NO. E F A B L S1 S2 3B-02 G1/8"X28 G1/8"X28 6 6 20.5 14 14 3B-02-04 G1/8"X28 G1/4"X19 6 5 23 14 19 3B-04 G1/4"X19 G1/4"X19 5 5 25 19 19 3B-04-06 G1/4"X19 G3/8"X19 5 6.5 27 19 22 3B-04-08 G1/4"X19 G1/2"X14 5 7.8 28.5 19 27 3B-06 G3/8"X19 G3/8"X19 6.5 6.5 29 22 22 3B-06-08 G3/8"X19 G1/2"X14 6.5 7.8 30.5 22 27 3B-08 G1/2"X14 G1/2"X14 7.8 7.8 31.5 27 27 3B-08-10 G1/2"X14 G5/8"X14 7.8 9 32.5 27 30 3B-08-12 G1/2"X14 G3/4"X14 7.8 10.5 32.5 27 32 3B-10 G5/8"X14 G5/8"X14 9 9 33 30 30 3B-10-12 G5/8"X14 G3/4"X14 9 10.5 33 30 32 3B-12 G3/4"X14 G3/4"X14 10.5 10.5 32.5 32 32 3B-12-16 G3/4"X14 G1"X11 10.5 11 35 32 41 3B-16 G1"X11 G1"X11 11 11 36.5 41 41 3B-16-20 G1"X11 G1.1/4"X11 11 11.5 38 41 50 3B-20 G1.1/4"X11 G1.1/4"X11 11.5 11.5 41 50 50 3B-24 G1.1/2"X11 G1.1/2"X11 12.5 12.5 43 55 55 3B-32 G2"X11 G2"X11 17 17 51 70 70

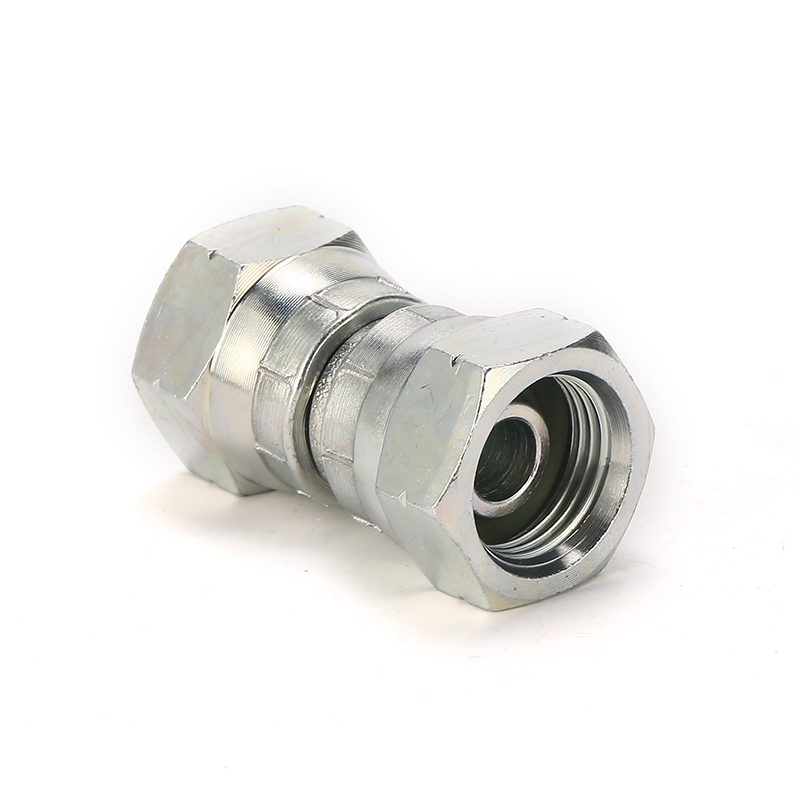

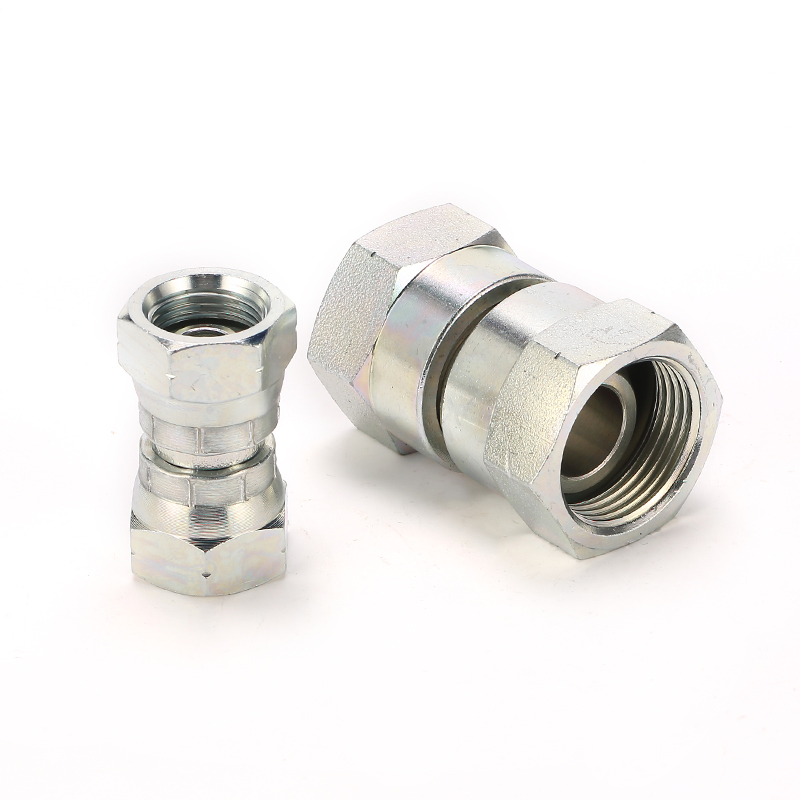

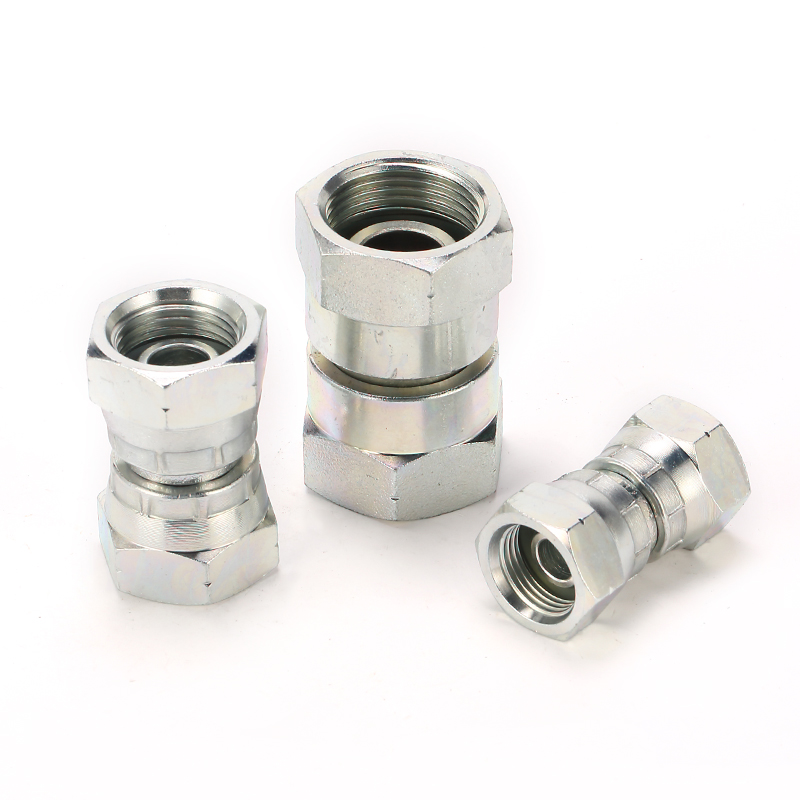

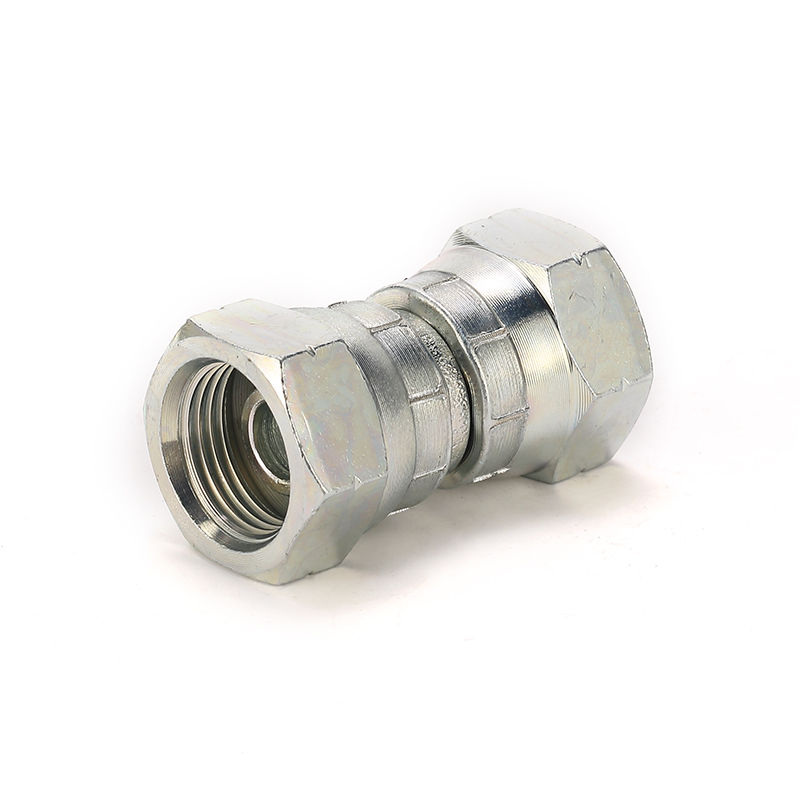

Pehel | P3B | Hydraulic BSP Female 60°Cone Adapter
PEHEL Hydraulic Model: 3B
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Thread: BSP
About the item:
1. Versatile fittings – designed with BSP swivel adapter for flexible connections.
2. BSP swivel adapter – allows 360° rotation to prevent hose twisting.
3. Leak-proof sealing – O-ring or tapered threads ensure zero fluid loss.
4. Durable steel body – corrosion-resistant for high-pressure durability.
5. Easy installation – swivel feature simplifies alignment and assembly.
